Description

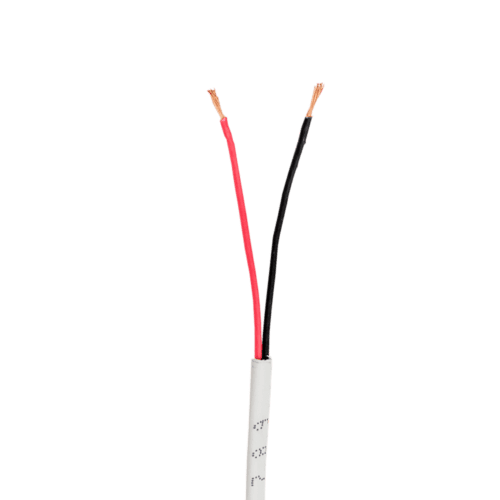

Genesis 18/2 Solid Thermostat Wire – Reliable Low-Voltage Cable for HVAC Installations
Keep your HVAC installs clean, dependable, and code-ready with this Genesis General Purpose Rated Thermostat Cable. Built with solid bare copper conductors for dependable signal transmission and low voltage drop, this 18 AWG 2-conductor cable is ideal for thermostat wiring, control systems, and other low-voltage HVAC applications. The durable PVC jacket and built-in rip cord make stripping and installation faster and easier on the jobsite, while sequential footage markings help contractors track cable usage and remaining length during large installs.
Designed for everyday HVAC field use, this cable meets key industry standards and is suitable for installation in approved raceways, cable trays, and general building applications outside air-handling spaces and risers. Sunlight resistance adds extra flexibility for exposed applications.
Key Features
- 18 AWG, 2-conductor solid thermostat wire
- Bare copper conductors for reliable conductivity and reduced voltage drop
- Durable polypropylene insulation with PVC outer jacket
- Built-in rip cord for quick jacket removal
- Sequential footage markings for easier tracking during installation
- Rated for 150V operation
- Temperature range: -20°C to 75°C
- Sunlight resistant construction
- Unshielded design for general-purpose HVAC applications
- Standards & Compliance
- UL 1685 General Purpose Rated
- UL 13 Type CL2 Power-Limited Circuit Cable
- REACH/RoHS compliant
Ideal for HVAC technicians, contractors, thermostat installations, control wiring, and other low-voltage applications where reliability and ease of installation matter.
