Description

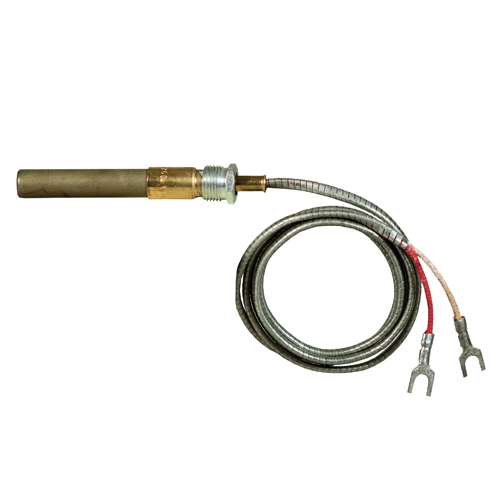

The Honeywell/Resideo Q313A1055 is a trusted millivolt thermopile generator engineered for self-powered control in natural gas and propane heating systems. Featuring a robust 47‑inch lead and a ½‑inch attaching nut, this component reliably delivers 750 mV to operate millivolt gas control systems—even in the absence of external power sources. Its compatibility with popular pilot burners makes it a go-to choice for furnace, water heater, and fireplaces.
Specifications:
- Length (Inches): 47″
- Voltage: 750mV
- Connection Type: Spade Terminals
- Resistance: 2.89 ohms
- Open Circuit Output: 600 mV to 750 mV
- Temperature Rating: Cold Junction: 780 F, Hot Junction: 1400 F
- Includes: 1/2″ Thermopile Attaching Nut
- Used With: Q327 Pilot Burners, Q379 Pilot Burners, Q314 Pilot Burner, Q377 Pilot Burners, Q324 Pilot Burners, Q382 Pilot Burners
