Description

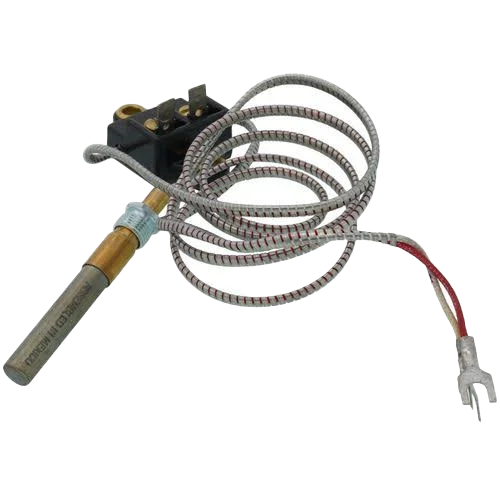

The Honeywell/Resideo Q313B1005 thermopile is a high-performance millivolt generator that powers gas control systems without external electrical sources. Built with multiple thermocouples wired in series, it delivers approximately 750 mV, enabling automatic ignition and safety control in pilot burner systems.
Specifications:
- Length (Inches): 35″
- Voltage: 750mV
- Connection Type: Spade Terminals
- Used With: Q314 Pilot Burner, Q324 Pilot Burners, Q327 Pilot Burners, Q377 Pilot Burners, Q379 Pilot Burners, Q382 Pilot Burners
