Description

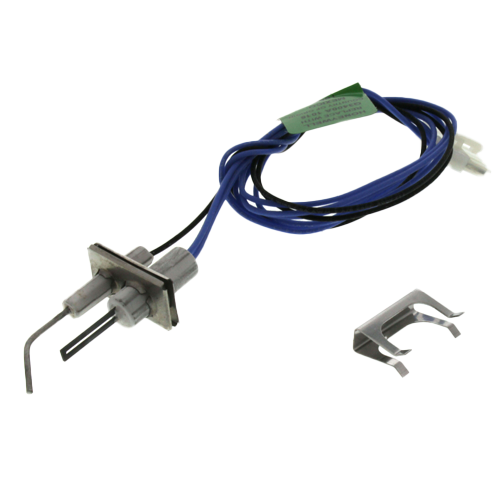

The Honeywell/Resideo Q3400A1016 Ignitor Flame Rod Assembly is a critical HVAC component engineered for dependable ignition and flame detection. Designed specifically for Hot Surface Pilot (HSP) systems, this composite ignitor and flame rod ensures safe and efficient operation in both residential and commercial gas-fired appliances.
Specifications
- Application: Flame Rod Assembly
- Used With: SV9500, SV9600; Field replacement for Q3450, Q3480, Q3620 hot surface pilot burner
- Temperature Ratings (C): Flame Rod Tip: 982 C; Igniter Insulator: 485 C; Flame Rod Insulator: 677 C; Flame Rod Lead: 250 C
- Temperature Ratings (F): Flame Rod Tip: 1800 F; Igniter Insulator: 905 F; Flame Rod Insulator: 1250 F; Flame Rod Lead: 482 F
- Pilot Btuh: 1000
- Length (in.): Ignition Wire–24 in.
- Length (mm): 610 mm
