Description

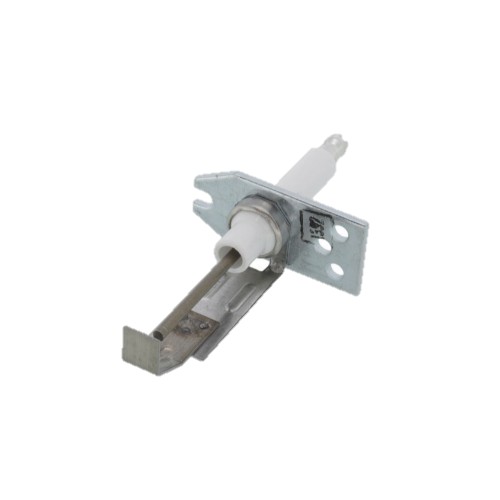

The Honeywell/Resideo Q347A1012 is a premium-quality spark igniter sensor, engineered to deliver consistent and powerful sparks for direct ignition of main burners across heating appliances. Its compact 90° rod orientation and Style D mounting bracket make it an ideal fit for tight installation spaces.
Features:
- Includes inner Kanthal electrode with ceramic insulator, bracket and ground strap.
- Use with S87C, D, K; S89E,F and Q354A.
Specifications:
- Application: Ignitor Only
- Item Type: Product
- Mounting: Bracket Style D; One 3/16 in. (5 mm) slot, three 3/16 in. (5 mm) untapped screw holes
- Approvals, Canadian Standards Association: 112395
- Rod Angle: 90 degree angle
- Length (in.): 2 1/32 in.
- Length (mm): 52 mm
