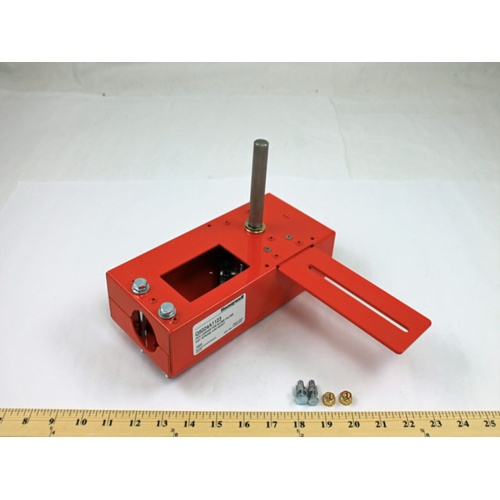

Honeywell Q5024A1123 Globe Valve Linkage Overview
The Honeywell Q5024A1123 Globe Valve Linkage is a precision-engineered accessory designed to connect direct coupled actuators to 2-way or 3-way globe valves. Engineered for reliable, repeatable performance in commercial HVAC hydronic systems, this linkage kit simplifies actuator-to-valve mounting and ensures accurate valve stroke transmission.
Key Features
- Designed for use with a 0.91″ (23 mm) valve stroke
- Compatible with direct coupled actuators on 2-way and 3-way globe valves
- Provides secure, rigid mechanical connection between actuator and valve stem
- Simplifies installation and reduces setup time in the field
- Manufactured to Honeywell’s quality standards for long-term reliability
- Ideal for commercial HVAC hydronic heating and cooling control applications
Application
The Q5024A1123 linkage is used when mounting a direct coupled actuator to a globe valve body. It bridges the actuator output to the valve stem, ensuring the correct stroke length is transmitted for precise flow modulation. This linkage is specifically suited for globe valves requiring a 0.91″ stroke, making it a critical component for proper system commissioning and control accuracy.
Specifications
- SKU: Q5024A1123
- Brand: Honeywell
- Valve Stroke: 0.91″
- Valve Compatibility: 2-Way and 3-Way Globe Valves
- Actuator Type: Direct Coupled
- Application: Commercial HVAC Hydronic Systems
