Description

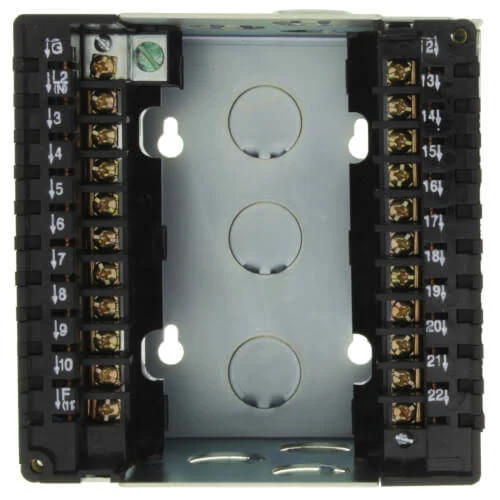

The Honeywell Q7800B1011 Universal Wiring Subbase is a heavy‑duty, wall or burner mount subbase designed for 7800 Series relay modules and the S7830A Expanded Annunciator. With its rugged metal construction, multiple knockouts for conduit wiring, and ample connection points, it sets the foundation for reliable control panel wiring in combustion, burner safety, and flame supervision systems.
Features:
- Makes electrical connections for 7800 SERIES relay modules or S7830A Expanded Annunciator through bifurcated contacts.
- Provides terminals for field wiring.
- Twenty-two terminals.
