Description

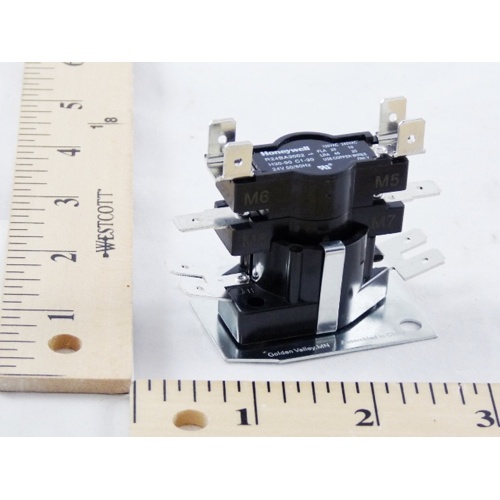

The Honeywell R24BA3002 is a reliable heat sequencer engineered for electric heat applications, providing precise staged control of heating elements to reduce electrical demand spikes and extend equipment life. With a 24Vac input voltage and flexible solder or screw terminal connections, this sequencer integrates easily into a wide range of residential and light commercial electric furnace and air handler systems.
Timing Delay Specifications
- First Switch On Timing Delay: 30–90 seconds
- First Switch Off Timing Delay: 1–30 seconds
- Second Switch On Timing Delay: 30–90 seconds
- Second Switch Off Timing Delay: 1–30 seconds
Electrical Specifications
- Input Voltage: 24Vac
- Terminal Type: Solder or Screw
Application & Features
- Designed for electric heat applications including electric furnaces and air handlers
- Staged sequencing reduces simultaneous inrush current from multiple heating elements
- Adjustable on and off timing delays for both first and second switches allow flexible system configuration
- Solder or screw terminal options provide installation versatility
- Honeywell quality construction ensures long-term reliability in demanding HVAC environments
