Description

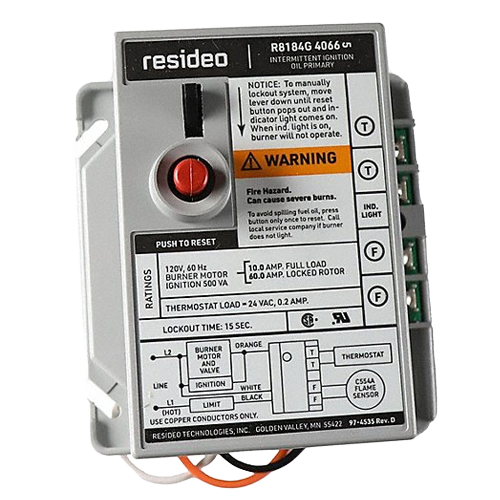

The Honeywell/Resideo R8184G4066 Protectorelay Oil Burner Control delivers reliable, automatic control of intermittent ignition oil burners with integrated safety shutoffs. Designed with a brief 15-second lockout interval, this solid-state control quickly halts operations on ignition or flame failure—supporting safer, more efficient heating cycles.
Specifications:
- Application: Controls oil burner, oil valve and the ignition transformer in response to a call for heat
- Approvals and Standards: UL Component Recognized; File no. MP268, Vol. 35 Sec. 1,3, CSA Certified; File no. LR95329-1
- Ignition Type: Intermittent
- Electrical Ratings at Full Load: 7.4 A @ 120 Vac; 3.7 a @ 240 Vac
- Electrical Ratings at Locked Rotor: 44.4 A @ 120 Vac; 22.2 A @ 240 Vac
- Product Height: 4.38 in, 111 mm
- Product Width: 4.13 in, 104 mm
