Description

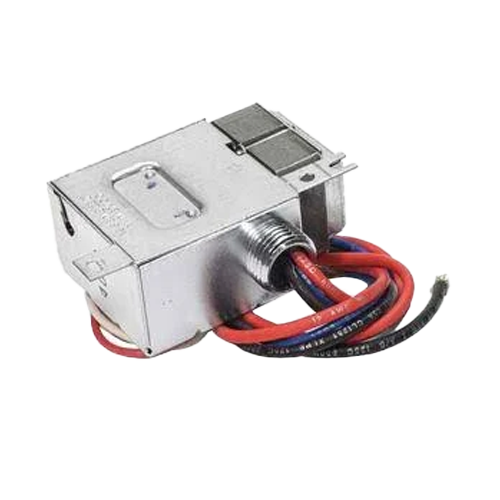

The Honeywell/Resideo R841C1169 is a dependable, single-pole/single-throw (SPST) electric heater relay—perfectly engineered to work in conjunction with a 24 VAC two-wire thermostat. Built with a robust 208–240 VAC coil and integrated transformer, it ensures seamless and safe switching of high-power electric heating systems.
Features:
- Operate with each cycle of the thermostat (4 to 6 cycles per hour).
- Each relay switches up to a 5,000 W load.
- Contacts make and break in about 75 seconds.
- Mount in any position.
- Includes 1/2 in. (13 mm) male conduit bushing.
Specifications:
- Dimensions (in.): 3 7/8 in. high x 2 13/16 in. wide x 1 1/2 in. deep
- Dimensions (mm): 98 mm high x 71 mm wide x 38 mm deep
- Includes: Enclosure w/ conduit bushing and an integral transformer
- Frequency: 50 Hz; 60 Hz
- Tradeline Value: Tradeline
- Electrical Connections: Leadwires
- Temperature Ratings (C): -29 C to +66 C
- Temperature Ratings (F): -20 F to +150 F
- Switching: SPST
- Contact Ratings (AFL): 7.0 A @ 208 Vac, 240 Vac, 277 Vac; 14 A @ 120 Vac
- Contact Ratings (ALR): 84 A @ 120 Vac; 42 A @ 208 Vac, 240 Vac, 277 Vac
- Contact Ratings (resistive): 22 A @ 120 Vac, 208 Vac, 240 Vac; 19 a @ 277 Vac
- Coil Ratings Voltage: 208 V; 240 Vac
