Description

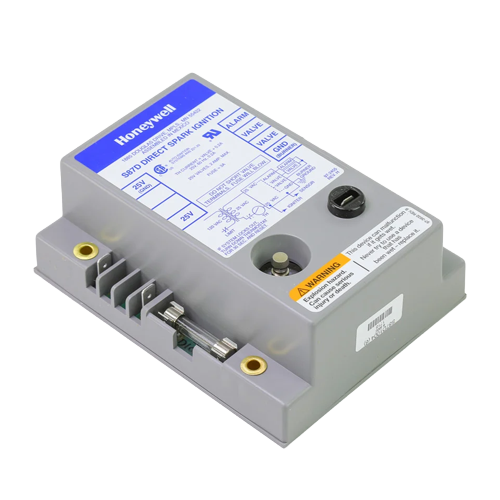

The Resideo S87D1004 is a solid-state two-rod Direct Spark Ignition (DSI) control module, meticulously designed for gas-fired furnaces, boilers, and heating appliances. It manages the ignition sequence and gas valve operation while monitoring flame presence using separate spark and sensing rods. If ignition fails within 6 seconds, the system initiates a lockout, providing a strong safety profile. Compatible with gas controls rated at 2 A or less, the S87D1004/U is ideal for residential and light commercial applications.
Specifications:
- Type of Fuel: Natural Gas, LPG
- Ignition Type:
- Direct Spark Ignition
- Ignition Source: Internal high voltage spark generator
- Ignition Between Trail Time:
- Lockout Ignition Sequence: Lockout
- Ignition Trials To Lockout: 1
- Pre-Purge: None
- Lockout Timing: 6 sec
- Flame Failure Response Time: 0.8 sec. @ 5.0 microamp
- Typical Ignition Hardware: Q347A, Q354, Q366
- Igniter-Sensor Rod: Dual
- Typical Gas Control: VR8205, VR8305
- Maximum Valve Load: 2A
- Frequency: 60 Hz
- Operating Voltage: 25 V AC
- Includes: Alarm terminal
- Product Height: 5.25 in, 133 mm
