Description

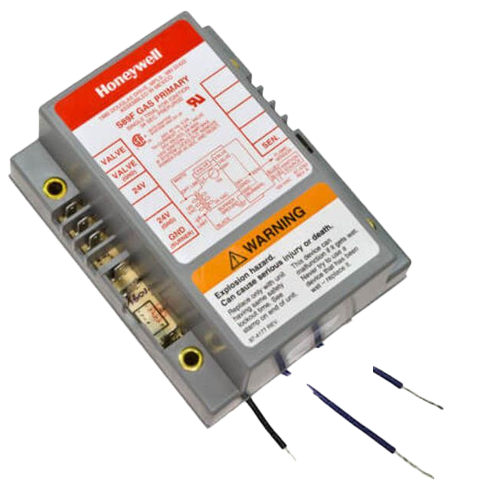

The Honeywell S89F1106 is a high-performance Direct Spark Ignition (DSI) control module designed for gas-fired atmospheric and power burners in residential furnaces and heating appliances. This module manages the ignition sequence and gas control operation, ensuring reliable and efficient performance.
Specifications:
- Description: Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances.
- Ignition System Type: Direct Spark Ignition
- Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
- Typical Gas Control: VR8205, VR8305
- Type of Gas: Natural or LP
- Ignition Source: External (120 VAC powered) High Voltage Spark Generator
- Ignition Trials To Lockout: 1
- Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Max Ambient Temperature: -40 F to +175 F
- Flame Failure Re-ignition Time: 0.8 sec.
- Maximum Valve Load @ 24 Vac (Amps): 2A
