Description

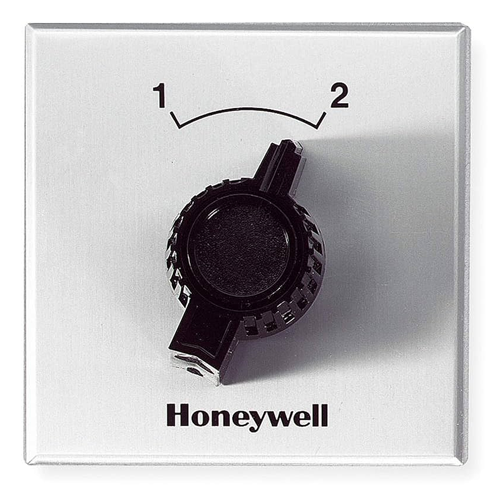

Optimize your pneumatic control system with the Honeywell SP470A1000 manual diverting switch—built for reliability and flexibility. Ideal for reconfiguring control sequences in environments requiring manual intervention such as day/night, seasonal automation, or system overrides.
Specifications:
- Switch Type: Two or Three Position Pneumatic Diverting Switch
- Switch Operation: Used to manually divert, block or bleed pneumatic air lines
- Airflow Usage: 0.175 scfm (82.6 mL/s) minimum at 1 psi pressure drop
- Air Connections: Barb fitting for 5/32 in. (4 mm) O.D. plastic tubing
- Maximum Safe Operating Pressure (psi): 30 psi
- Mounting: Panel mount
- Operating Humidity Range: 5 to 95% RH
- Temperature Range: 20 F to 140 F
- Dimensions: 1 5/8 in. high x 1 9/16 in. wide x 3 in. deep
