Description

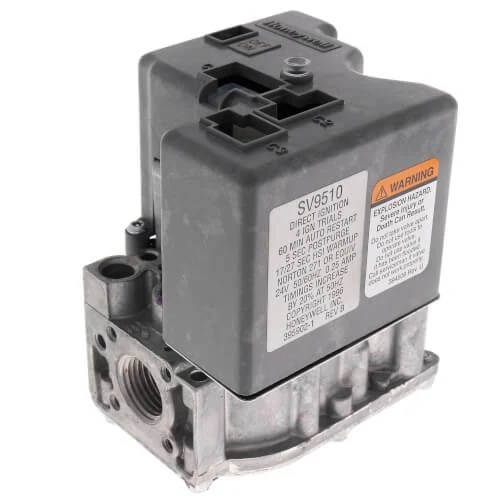

The Honeywell/Resideo SV9510K2539 SmartValve control integrates gas valve modulation with hot surface ignition sequencing in a single robust unit. Designed for reliability and safety, it’s perfect for a wide range of natural gas-fired appliances—including furnaces, boilers, water heaters, unit heaters, infrared heaters, and commercial cooking equipment. This model features a slow-opening valve, ensuring gentle system startup and reducing combustion stress.
Features:
- The control communicates directly with the ST9160 Electronic Fan Timer (EFT) in typical forced warm air furnace applications
- It will also interface with the 208907 Terminal Board, providing compatibility with power-stealing thermostats. Or, it directly interfaces with the appropriate power supplies and a system thermostat for additional appliance applications
- When controlled directly by a thermostat, the control does not provide a postpurge function, as power to the control is removed when the thermostat call for heat ends
- This system is suitable for a wide range of fan-assisted combustion, gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters and commercial cooking appliances
