Description

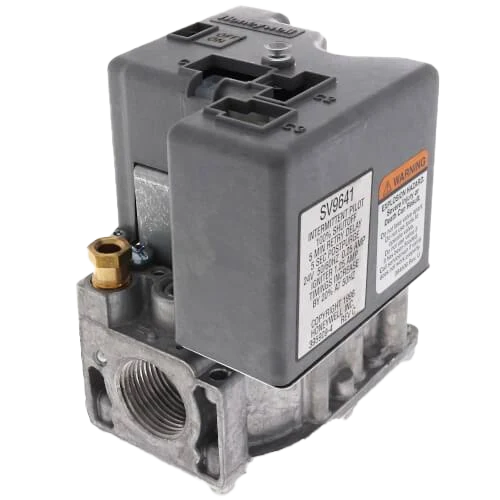

The Honeywell/Resideo SV9641M4510 SmartValve combines advanced gas flow control with electronic intermittent hot-surface pilot ignition within a single robust unit. Engineered for 24 VAC systems, it supports igniter, flame sensing, airflow monitoring, and full safety sequencing—prepurge, ignition, postpurge—with continuous retry and 100% gas shutoff. Its integrated LED diagnostics simplify commissioning and troubleshooting.
Specifications:
- Replaces: SV9540M2260, SV9640M4116, SV9640M4124, SV9640M4132, SV9541M2094, SV9640M3126, SV9540M2278, SV9540M2229, SV9540M2245
- Fuel Type: Natural Gas
- Body Pattern: Straight-Through
- Voltage: 24V
- Ignition Trial Time: 90 sec
- Inlet Size: 3/4″
- Outlet Size: 3/4″
- Ignition Type: Direct Hot Surface Pilot
- Ignition Trials to Lockout: Continuous Retry
