Description
Trade replacement for Bradford White, 1″ Insulation Tank (Natural Gas, 4″ W.C.)

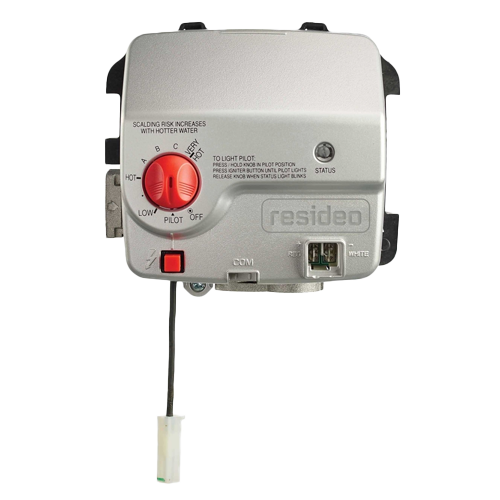

The WT8840A1000 is a perfect gas valve replacement for older Honeywell/Resideo WV8840 gas valves used on Bradford White water heaters. A built-in temperature sensor sits in the tank’s immersion well, letting the control deliver accurate water temperature while a resettable cut-out prevents dangerous overheating. All power comes from the pilot’s thermopile, so no external wiring is required.
This gas valve is designed for standing pilot applications with an immersion well.
Service flexibility: Fits water heaters with 1 in. insulation cavity. Choose WT8840B models for AO Smith units with 2 in. insulation if needed.
Key Features
Direct Swap‑In Design
This gas valve replaces several Bradford White part numbers (222‑47463‑01A / ‑01E, 415‑52907‑01) and older Honeywell WV8840 models. No piping or bracket changes.
Dial Range 55 – 155 °F (13 – 68 °C)
Allows you to pick a safe shower temperature or turn it up for extra hot water when needed.
Integrated NTC Temperature Sensor
Reads tank water up to 221 °F for precise control and fast safety shut‑off if it gets too hot.
Resettable Emergency Temperature Cut‑Off (ECO)
If water overheats, press the ECO button—no need to replace the whole valve.
Status LED Light
Simple error codes show you what’s wrong, saving up to 30 minutes of diagnosis.
Larger Pilot Flame & Short‑Circuit‑Proof Design
A stronger pilot reduces outages, and internal circuits protect the valve if the thermopile shorts.
Key Specs
| Gas Type & Capacity | Natural gas, up to 75 ft³ / hr (≈ 75 kBTU/h) |
| Pressure Regulator (Outlet) | 4 in. W.C. setting |
| Power Source | Thermopile from standing pilot (no external 24 V supply) |
| Temperature Sensor | Integrated NTC in 1 in. immersion well |
| Control Action | Single‑stage, on/off |
| Approvals | CSA listed for water‑heater use |
What’s Included
- WT8840A1000 gas control valve (1 in. cavity)
- Pre-installed immersion-well sensor
- Owner / installer instructions
