Description

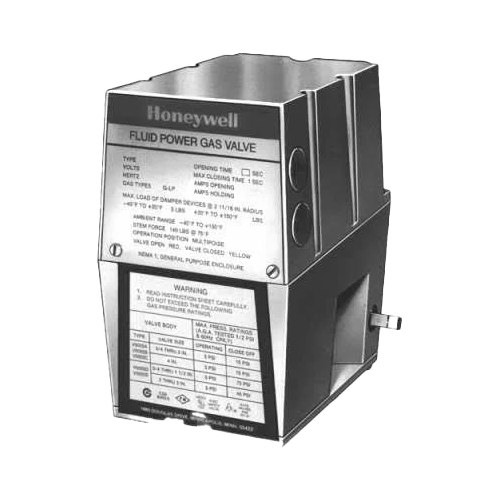

Ensure safe and efficient burner operation with the Honeywell V4055D1043 ON/OFF Actuator featuring Proof of Closure and 13-second timing. Engineered for commercial and industrial gas control applications, this high-performance actuator is designed to operate with Honeywell V5055 and V5097 gas valves, offering precise ON/OFF control for reliable burner management.
Features:
- Use where smooth light off is important.
- One-second maximum closing time.
- Continuously displays the valve position with a red indicator when open and a yellow indicator when closed.
- Mount in any position directly to valve bonnet with three setscrews.
- Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.
- Includes Proof of closure auxiliary switch.
Specifications:
- Electrical Rating: 120 Vac
- Max Pressure (PSI): 5
- Temperature Range (F): -40°F to 150°F
- Timing: 13 Seconds
- Product Type: Actuator
- Actuator Type: On/Off
