Description

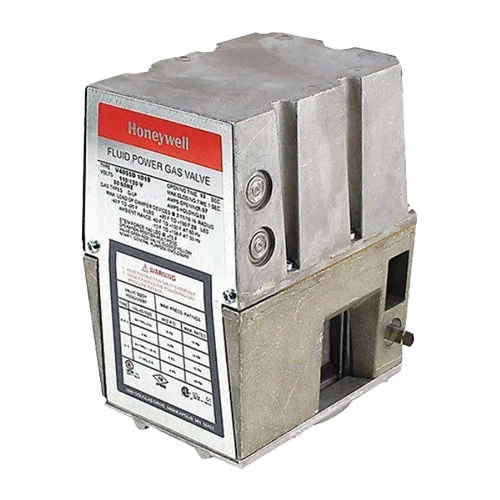

The Honeywell V4055E1040 is a high-performance on/off actuator designed for precise gas valve control in commercial and industrial burner applications. Engineered for reliability and safety, this actuator is compatible with Honeywell V5055 and V5097 gas valves, providing a robust solution for critical gas supply systems.
Features:
- Use where smooth light off is important.
- One-second maximum closing time.
- Continuously displays the valve position with a red indicator when open and a yellow indicator when closed.
- Mount in any position directly to valve bonnet with three setscrews.
- Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.
Specifications:
- Max Pressure (PSI): 15
- Temperature Range (F): -40°F to 150°F
- Enclosure Type: NEMA 4
- Used With: V5055, V5097
- Product Type: Actuator
