Description

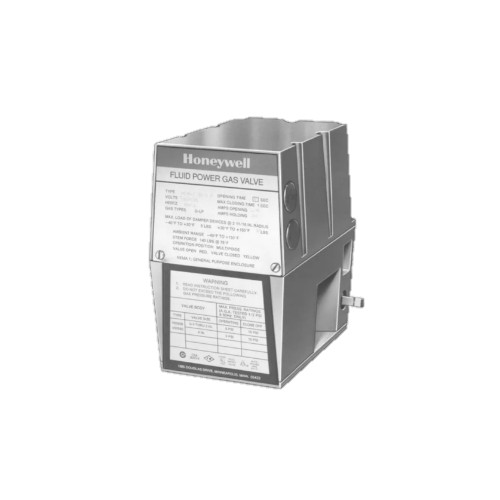

The Honeywell V4062D1010 is a robust industrial-grade, Hi‑Lo‑Off fluid power gas valve actuator, designed to pair with V5055 and V5097 series gas valves. It delivers dependable, precise gas flow control for commercial and industrial burner systems
Features:
- Provide final safety shutoff service when used with V5055 or V5097 gas valve
- One-second maximum closing time
- Continuously displays the valve position with a red indicator when open and a yellow indicator when closed
- Mount in any position directly to valve bonnet with three setscrews
- Provide final safety shutoff service when used with V5055 or V5097 Gas Valves
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz Maximum
- Safe Operating Pressure (psi): 5 psi
- Maximum Safe Operating Pressure (kPa): 34 kPa
- Temperature Range: -40°F to +150°F (-40°C to +66°C)
- Used With: V5034; V5055; V5097
- Approvals, CSA: When used with V5055 and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada
- Approvals, Underwriters Laboratories Inc.: When used with V5055A-E (3/4 to 4 in.) or V5097A-C (3/4 to 3 in.): Listed, File No. MH1639 Guide No. YIOZ
- Approvals, Swiss RE: When used with V5055 or V5097: Acceptable
