Description

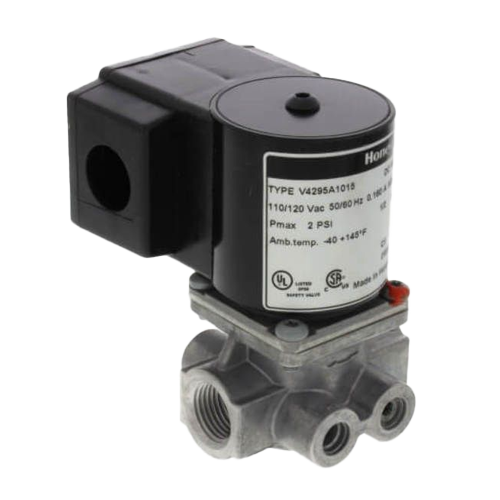

The Honeywell V4295A1015 is a high‑performance, normally closed solenoid gas valve designed for reliable shutoff in commercial and industrial heating applications. Operating at 120V AC, this valve is engineered for 1/2″ NPT pipe sizes and is rated for a maximum pressure of 2 PSI, making it suitable for systems requiring precise gas flow control.
Features:
- V8295A,S are used with 24 Vac controllers.
- V4295A,S are used with 120 Vac controllers.
- Positive close off of gas flow when de-energized.
- High valve spring force allows up to 0.7 psi back pressure at valve seat.
- No inlet pressure influence at valve seat.
- Inlet pressure changes do not affect ability to close valve.
- Low operating noise.
- Low rush-in current.
- Upstream and downstream taps allows tapping and testing pressure points.
