Description

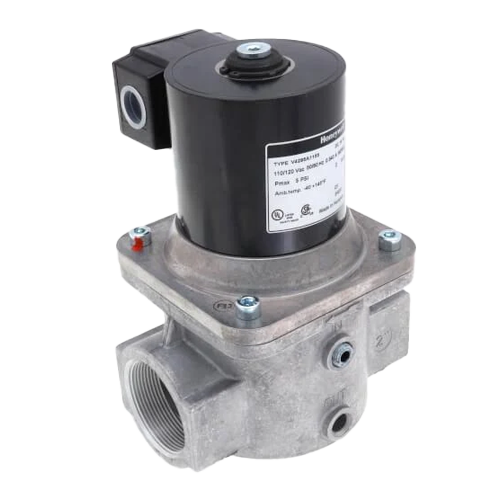

The Honeywell V4295A1155 is a high-performance solenoid gas valve designed for industrial and commercial applications requiring reliable gas flow control. With a 2-inch NPT pipe size and a 5 PSI maximum pressure rating, this valve ensures precise and safe operation in various systems.
Features:
- V8295A,S are used with 24 Vac controllers.
- V4295A,S are used with 120 Vac controllers.
- Positive close off of gas flow when de-energized.
- High valve spring force allows up to 0.7 psi back pressure at valve seat.
- No inlet pressure influence at valve seat.
- Inlet pressure changes do not affect ability to close valve.
- Low operating noise.
- Low rush-in current.
- Upstream and downstream taps allows tapping and testing pressure points.
- Mounting: Vertical to 90 degrees from vertical
- Type of Fuel: Air; natural; manufactured; mixed; LP
- Valve Opening Time: less than 1 sec
- Valve Closing Time: less than 1 sec
- Body Pattern: Straight-through, non-offset
Specifications:
- Size: 2″
- Voltage: 120v
- Fuel Type: Natural Gas, Propane, Air, Mixed, Manufactured
- Pressure Rating: 5 psi
- Body Pattern: Straight-Through
- Mount: Vertical to 90 degrees from vertical
- Material: Die Cast Aluminum
- Min Temp (F): -40°F
- Max Temp (F): 140°F
