Description

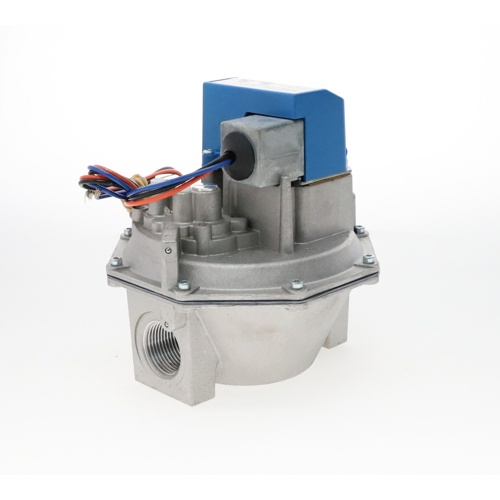

The Honeywell V4944N1011 is a two-stage pressure regulating gas valve engineered for reliable, precise fuel control in commercial and industrial gas-fired heating applications. With a 1″ NPT connection and 120Vac operating voltage, this valve delivers dual-stage regulation to maximize combustion efficiency and system performance.
High Fire & Low Fire Regulation
The V4944N1011 features independent high fire and low fire regulator stages, allowing the burner system to modulate between two distinct firing rates for improved efficiency and reduced fuel consumption. Factory-set pressure points are calibrated for immediate installation and commissioning.
Key Specifications
- SKU / Model: V4944N1011
- Valve Type: Two-Stage Pressure Regulating Gas Valve
- Inlet/Outlet Connection Size: 1″ NPT
- Operating Voltage: 120Vac
- Gas Type: Natural Gas
- High Fire Regulator Setpoint Range: 3″ – 4.5″ Water Column (W.C.)
- High Fire Factory Setting: 3.5″ Water Column
- Low Fire Regulator Setpoint Range: 0.8″ – 2″ Water Column (W.C.)
- Low Fire Factory Setting: 0.8″ Water Column
- Capacity Range: 300,000 – 1,000,000 BTU/hr (300–1000 MBH)
Two-Stage Operation Benefits
Two-stage gas valves allow heating systems to operate at a lower firing rate during mild demand conditions and ramp up to full capacity when needed. This staged approach reduces thermal cycling, extends equipment life, lowers operating costs, and improves overall system comfort and efficiency compared to single-stage operation.
Design & Installation Features
- Factory-set pressure outputs for simplified commissioning
- Field-adjustable high fire and low fire setpoints for application flexibility
- 1″ NPT connections for straightforward integration into standard gas piping
- 120Vac coil voltage compatible with common commercial control systems
- Compact, rugged construction suitable for demanding commercial environments
Typical Applications
- Commercial and industrial gas-fired boilers
- Large rooftop units and air handlers
- Unit heaters and infrared heaters
- Furnaces and duct furnaces rated 300–1000 MBH
- Burner management systems requiring two-stage firing
The Honeywell V4944N1011 is a trusted solution for contractors and engineers seeking dependable two-stage gas control in high-capacity heating systems. Order from Jackson Systems for expert support and fast fulfillment.
