Description

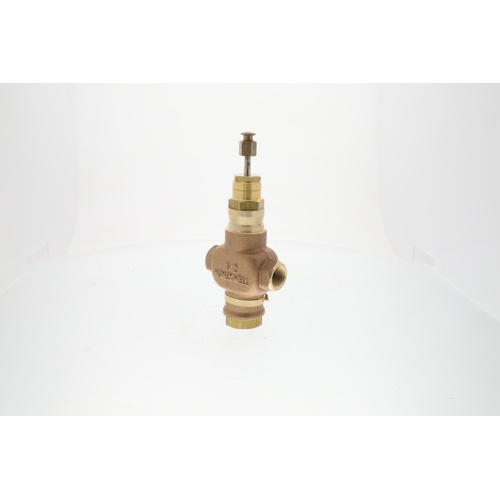

The Honeywell V5011N2006 is a precision-engineered 2-way globe valve designed for demanding steam and hydronic control applications. Built with a durable red brass body and stainless steel trim, this valve delivers reliable, long-lasting performance in commercial and industrial HVAC systems.
Key Features
- 2-way, single-seat globe valve configuration for accurate flow modulation
- 1/2″ NPT end connections for straightforward installation into standard piping systems
- 0.73 Cv flow coefficient provides precise, calibrated flow control
- Linear flow characteristic ensures proportional response across the full stroke range
- Stem-down-to-close (normally open) actuator orientation
- Red brass body construction offers excellent corrosion resistance
- Stainless steel trim for enhanced durability and resistance to steam and high-temperature media
Specifications
- Valve Type: 2-Way Globe Valve
- Connection Size: 1/2″ NPT
- Flow Coefficient (Cv): 0.73
- Flow Characteristic: Linear
- Body Material: Red Brass
- Trim Material: Stainless Steel
- Actuator Action: Stem Down to Close
- Maximum Steam Pressure: 100 PSI
- Maximum Steam Temperature: 337°F
Applications
- Steam heating systems up to 100 PSI and 337°F
- Hot water and hydronic heating coil control
- Commercial and industrial HVAC air handling units
- Fan coil unit and terminal unit control
- Building automation and DDC control systems
The V5011N2006 is compatible with Honeywell and third-party electric actuators, making it a versatile choice for new installations and retrofit projects. Its compact 1/2″ body size and NPT threading simplify integration into existing piping, while the linear flow characteristic ensures smooth, stable modulation when paired with a proportional actuator.
