Description

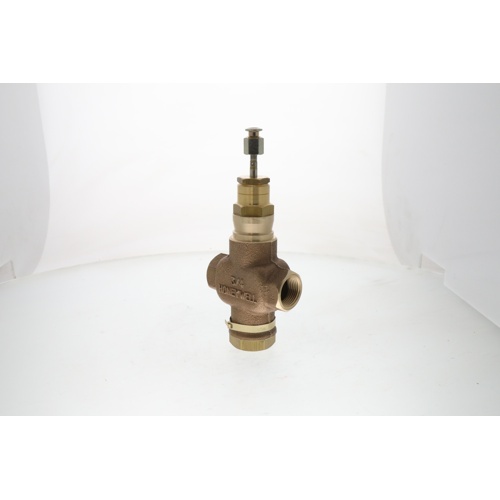

The Honeywell V5011N2055 is a heavy-duty, 2-way globe valve engineered for demanding steam and hydronic control applications. Built with a red brass body and stainless steel trim, this valve delivers reliable, long-lasting performance in commercial and industrial HVAC systems. Its stem-down-to-close design ensures positive shutoff, while the linear flow characteristic provides precise, proportional control across the full range of valve travel.
Key Features
- 2-way, single-seat globe valve configuration
- 3/4″ NPT end connections for straightforward installation
- 7.3 Cv flow coefficient for accurate flow sizing
- Linear flow characteristic for proportional control
- Red brass body construction for corrosion resistance
- Stainless steel trim for durability in steam service
- Stem-down-to-close (normally open) actuator orientation
Specifications
- Valve Type: 2-Way Globe Valve
- Connection Size: 3/4″
- Connection Type: NPT (National Pipe Thread)
- Flow Coefficient (Cv): 7.3
- Flow Characteristic: Linear
- Body Material: Red Brass
- Trim Material: Stainless Steel
- Actuator Action: Stem Down to Close
- Maximum Steam Pressure: 100 PSI
- Maximum Steam Temperature: 337°F
Applications
- Steam heating and distribution systems
- Commercial and industrial HVAC hydronic systems
- Fan coil units and air handling units
- Building automation and control valve assemblies
