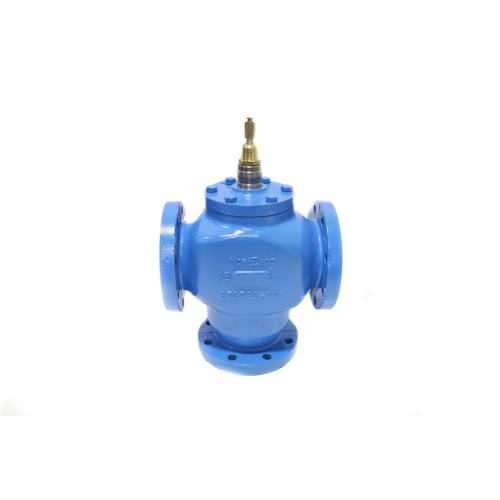

Honeywell V5013B1029 3-Way Mixing Globe Valve Overview
The Honeywell V5013B1029 is a heavy-duty, 3-way mixing globe valve engineered for commercial and industrial hydronic systems. With a 4-inch 125# flange connection and a generous 160 Cv flow coefficient, this valve delivers precise, reliable flow control in demanding chilled water and hot water applications. The cast iron body with bronze trim provides long-lasting corrosion resistance, while the linear (constant total) flow characteristic ensures predictable, stable system performance across the full stroke range.
Key Features
- 3-Way mixing configuration for chilled or hot water blending applications
- 4-inch 125# flange end connections for secure, leak-free installation
- 160 Cv flow coefficient for high-capacity flow control
- Linear (constant total) flow characteristic for stable, proportional control
- Cast iron body with bronze trim — durable and corrosion-resistant construction
- Stem-up-to-increase-flow action from port B to port AB
- Rated for chilled or hot water systems with up to 50% glycol solutions
- 150 PSI maximum working pressure
Specifications
- SKU: V5013B1029
- Brand: Honeywell
- Valve Type: Globe, 3-Way Mixing
- Pipe Size: 4 inch
- End Connection: 125# Flange
- Flow Coefficient (Cv): 160
- Flow Characteristic: Linear (Constant Total)
- Body Material: Cast Iron
- Trim Material: Bronze
- Actuator Action: Stem Up to Increase Flow (B to AB)
- Media: Chilled Water, Hot Water, Up to 50% Glycol
- Maximum Working Pressure: 150 PSI
Applications
- Commercial and industrial hydronic heating and cooling systems
- Chilled water distribution and blending
- Hot water heating circuits with glycol freeze protection
- AHU coil control and terminal unit mixing
- Building automation and DDC control system integration
