Description

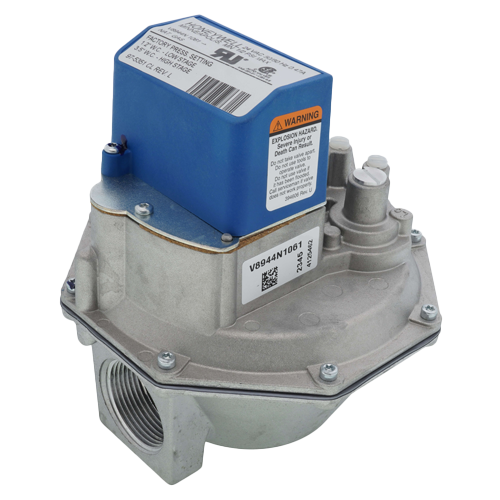

The Honeywell V8944N1061 is a premium, two‑stage diaphragm gas valve engineered for precision control in commercial and industrial HVAC applications. Combining safety shutoff and pressure regulation in a single device, it’s widely used across boilers, rooftop heaters, water heaters, and duct furnaces.
Specifications:
- Frequency: 60 Hz
- Capacity (CFH): 480 to 1600
- Valve Type: Two Stage, Rapid Opening
- Body Pattern: straight-through, non-offset
- Voltage: 24V
- Pressure Rating: 1/2 psi
- Fuel Type: Natural Gas
- Material: Aluminum
- Mount: Horizontal
- Operating Temp Range: -40°F to 150°F
- Electric Connection: 1/4″ Spade Terminal, 30″ leadwires and cover for electrical conduit connection provided.
- Size: 1-1/4″
- Min Temp (F): -40°F
- Max Temp (F): 150°F
