Description

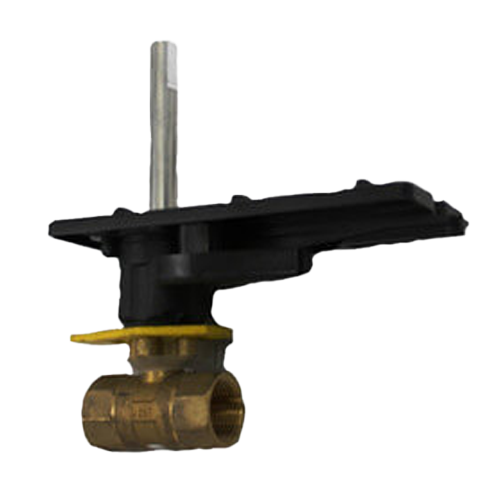

Deliver precise liquid control in HVAC systems with the Honeywell VBN2AGPX0000—a rugged, compact ½″ NPT control ball valve designed for superior flow regulation and seamless actuator integration.
Features:
- Sizes from 1/2 to 3 in. with internal (female) NPT connections
- Equal percentage flow characteristic
- Reduced B port CV for constant loop flow
- Choice of factory-installed actuation: floating, modulating (2-10 V), spring return or non-spring return 2-Position, Spring Return Modulating/Floating
- Field configurable for normally open or normally closed fail-safe position
- Removable manual operating handle to control valve during installation or in an event of power failure
- Actuator can be mounted on the valve in any of four orientations
- Field-serviceable stem assembly
- Wide range of CV choices from 0.33 to 266
- Nickel-chrome plated brass or 316 stainless steel ball and stem
