Description

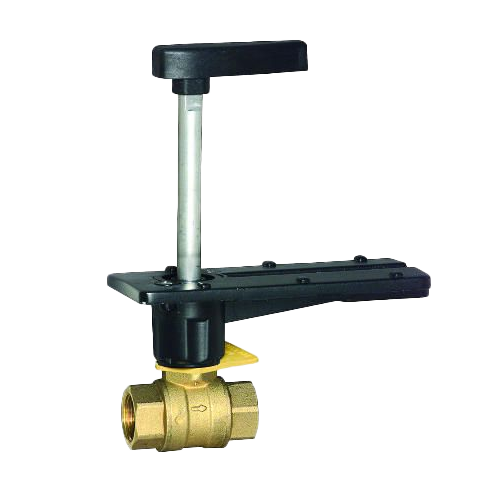

Precision flow control just got tougher: the Honeywell VBN2AHPX0000 is a high‑performance 2‑way brass ball valve engineered for HVAC and hydronic applications. With a 4.7 Cv rating and compatibility with Honeywell’s DCA actuators, this valve delivers reliable performance, long service life, and flexibility for many installations.
Features:
- Sizes from 1/2 to 3 in. with internal (female) NPT connections.
- Equal percentage flow characteristic.
- Reduced B port CV for constant loop flow.
- Choice of factory-installed actuation: floating, modulating (2-10 V), spring return or non-spring return 2-Position, Spring Return Modulating/Floating.
- Field configurable for normally open or normally closed fail-safe position.
- Removable manual operating handle to control valve during installation or in an event of power failure.
- Actuator can be mounted on the valve in any of four orientations.
- Field-serviceable stem assembly.
- Wide range of CV choices from 0.33 to 266.
- Nickel-chrome plated brass or 316 stainless steel ball and stem.
