Description

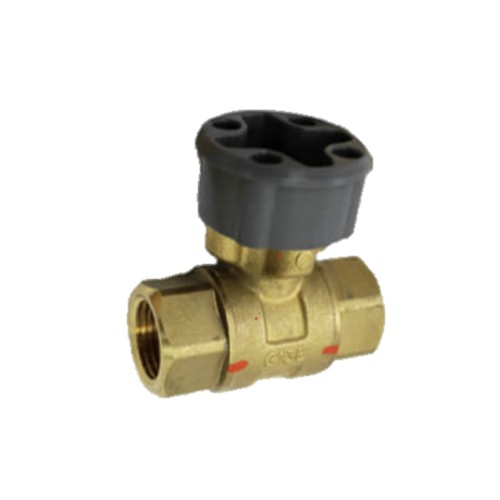

The Honeywell VBN2BJPA0000 is a high-efficiency ¾″ brass control ball valve designed for HVAC hot/chilled water systems. Engineered with a parabolic flow insert, it delivers 7.4 Cv performance while requiring low actuator torque—making it ideal for pairing with Honeywell MVN actuators for precision control across heating and cooling zones.
Features:
- Sizes from 1/2 to 3 in. with internal (female) NPT connections.
- Equal percentage flow characteristic.
- Reduced B port CV for constant loop flow.
- Choice of factory-installed actuation: floating, modulating (2-10 V), spring return or non-spring return 2-Position, Spring Return Modulating/Floating.
- Field configurable for normally open or normally closed fail-safe position.
- Removable manual operating handle to control valve during installation or in an event of power failure.
- Actuator can be mounted on the valve in any of four orientations.
- Field-serviceable stem assembly.
- Wide range of CV choices from 0.33 to 266.
- Nickel-chrome plated brass or 316 stainless steel ball and stem.
