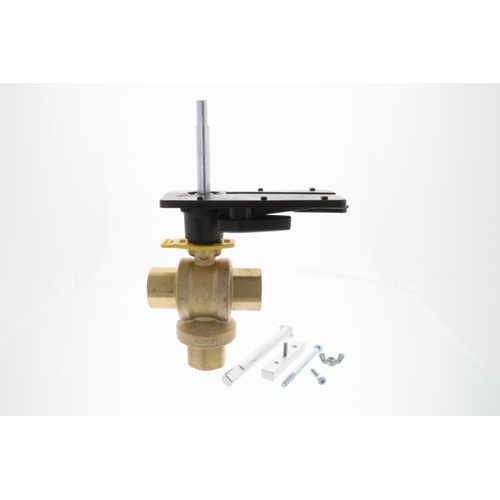

Honeywell VBN3CKPX0000 3-Way Ball Valve Overview
The Honeywell VBN3CKPX0000 is a commercial-grade 3-way ball valve engineered for precise flow control in chilled and hot water hydronic systems. Built with a durable brass body and a nickel-chrome plated brass ball and stem, this valve delivers long-lasting performance and corrosion resistance in demanding HVAC applications. Its direct coupled actuator base simplifies installation and ensures compatibility with a wide range of Honeywell actuators.
Flow Characteristics
- Equal percentage flow characteristic from Port A to Port AB — ideal for modulating control in variable-flow systems
- Linear flow characteristic from Port B to Port AB — provides proportional flow response for balanced system performance
- Flow coefficient (Cv): 14.90 — engineered for optimal flow capacity in 1″ piping applications
Construction & Materials
- Valve body: Brass construction for strength and corrosion resistance
- Ball and stem: Nickel-chrome plated brass for enhanced durability and smooth operation
- 3-way configuration for mixing or diverting applications
- 1″ NPT end connections for standard pipe compatibility
Performance Specifications
- Maximum fluid temperature: 250°F (121°C)
- Suitable for chilled water and hot water HVAC systems
- Direct coupled actuator base for easy actuator mounting
- Cv rating: 14.90
- Connection type: NPT (National Pipe Thread)
- Pipe size: 1″
Applications
- Commercial and industrial hydronic heating and cooling systems
- Fan coil units and air handling units
- Chilled water and hot water distribution systems
- Building automation and HVAC control systems
Why Choose the Honeywell VBN3CKPX0000?
The VBN3CKPX0000 combines robust brass construction with dual flow characteristics in a single valve body, making it a versatile solution for both mixing and diverting applications. The integrated direct coupled actuator base eliminates the need for additional linkage hardware, reducing installation time and potential leak points. With a 250°F maximum temperature rating, this valve is well-suited for a broad range of hydronic system demands.
