Description

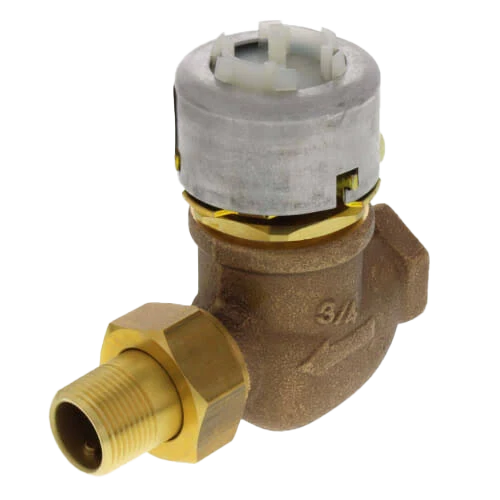

Efficiently control hot water or steam flow in HVAC systems using the Honeywell VP525C1032. This normally-open, proportional pneumatic two-way valve delivers precision modulation in compact installations—trusted in residential and commercial hydronic systems.
Features:
- Available in several capacities and spring ranges for various application requirements.
- Easily replaceable actuator assembly for convenience of service.
- Compact size for installation where space is limited.
- Can be repacked without shutting down system.
Specifications:
- Application: Heating
- Size: 3/4″
- Spring Range: 3 psi to 10 psi
- Max Pressure (PSI): 30 (Diaphragm), 150 (Body)
- Valve Action: Proportional Normally Open
- Flow Capacity (Cv): 5
- Valve Type: Unitary
- Min Temp (F): 40°F
- Temperature Range (F): 40°F to 240°F
- Max Temp (F): 240°F
- Actuator Diaphragm: 230°F
- Air Connections: Push-On for 1/4″ O.D. Plastic Tubing
- Controlled Fluid: Water, Steam
- Humidity Range: 5 to 95% RH
- Body Pattern: Straight
- Connection Method: Threaded
- Connection Type: FNPT x MNPT Union
