Description

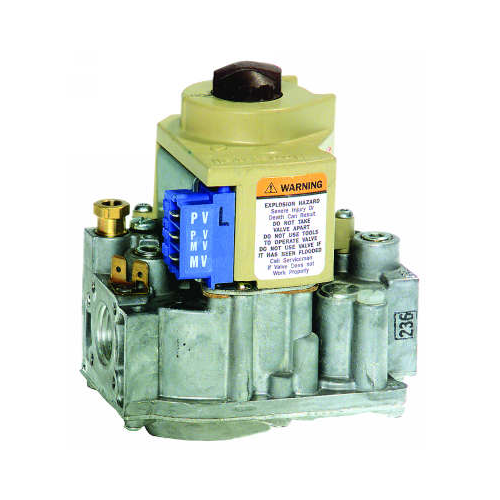

The Honeywell/Resideo VR8204C1019 is a combination gas control valve designed for intermittent‑pilot, single‑stage gas‑fired appliances. Powered by 24 Vac, this compact, dual‑automatic valve delivers dependable gas flow management, enhanced safety, and reliable performance—for capacities between 30 to 415 cubic feet per hour (CFH).
Features:
- Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
- Use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules.
- Compact size.
- Provide two automatic valves.
- Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meet codes requiring dual safety shutoff.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
- ON-OFF lighting sequence.
