Description

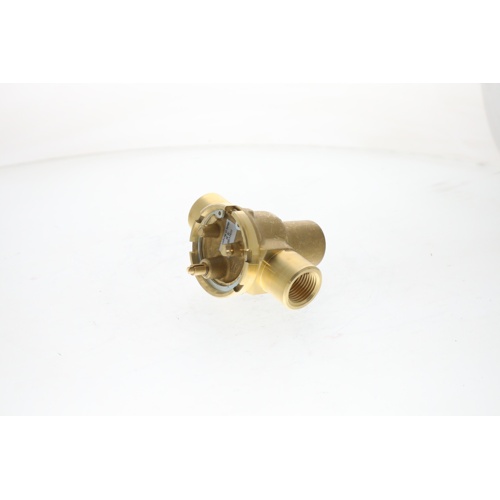

The Honeywell VU54N1007 is a three-way mixing fan coil valve engineered for precise flow control in hydronic heating and cooling applications. Featuring a robust brass construction and quick-opening characteristic, this valve delivers reliable performance in chilled water and hot water systems, including those utilizing up to 60% glycol solutions.
Key Features
- Three-way mixing configuration for versatile hydronic system integration
- 1/2″ NPT connections for straightforward installation
- 4 Cv flow coefficient for accurate flow capacity matching
- 20 PSI maximum close-off pressure rating
- Quick-opening flow characteristic for responsive control
- Compatible with chilled water and hot water systems with up to 60% glycol
Construction & Materials
- Brass body for corrosion resistance and long service life
- Brass stem for durability and reliable actuation
- Brass seat for tight shut-off performance
- Buna-N rubber plug/ball/disc for excellent sealing integrity
- EPDM rubber packing for enhanced chemical compatibility and leak-free operation
Typical Applications
- Fan coil units in commercial and light commercial HVAC systems
- Hydronic heating and cooling distribution systems
- Chilled water and hot water mixing applications
- Systems requiring glycol-compatible valve components
Specifications
- SKU: VU54N1007
- Brand: Honeywell
- Valve Type: Three-Way Mixing
- Connection Size: 1/2″ NPT
- Flow Coefficient (Cv): 4
- Maximum Close-Off Pressure: 20 PSI
- Flow Characteristic: Quick Opening
- Body Material: Brass
- Stem Material: Brass
- Seat Material: Brass
- Plug/Ball/Disc Material: Buna-N Rubber
- Packing Material: EPDM Rubber
- Media Compatibility: Chilled Water, Hot Water, Up to 60% Glycol
