Description

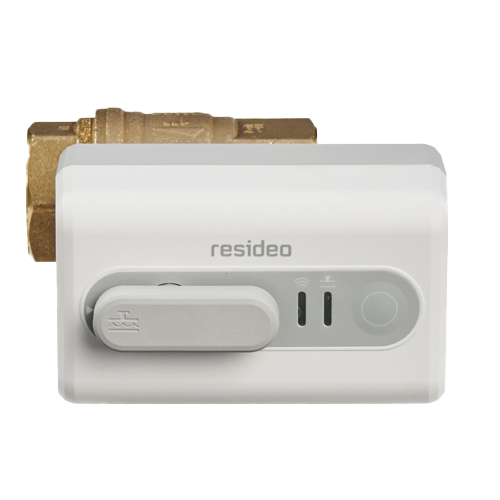

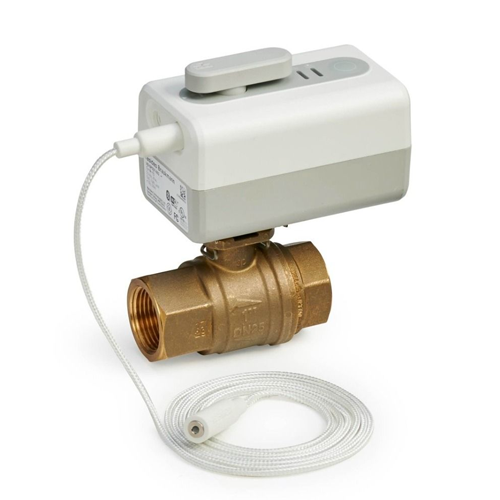

The Honeywell/Resideo VWS01Y‑1 is a sophisticated, smart home water leak protection solution. It integrates an L5 Wi‑Fi actuator shutoff valve with an L1 Wi‑Fi water leak and freeze detector. This combo offers automatic water shutoff and instant mobile alerts—designed to stop water damage before it happens.
Specifications:
- Pipe Size: 1 in
- DN Size: DN25
- Rated Torque: 44.25 in-lbs, 5 Nm
- Breakaway Torque: 57.53 in-lbs, 6.5 Nm
- Wireless Connectivity: WiFi frequency band of 2.4GHz, 802.11 b/g/n, Bluetooth 4.1
- Includes: L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, Water Leak Detector Cable, Separate Water Leak Detector and Cable
- Connection Type: NPT
- Valve Type: Ball Valve
- Lead Free: Yes
- Protection Class: IPX4, Indoor, UL Type 2
- Color: White, Brass
- Mounting Location: Install the L5 Water Valve on the main water line after the main water shutoff valve and the pressure reducing valve (if applicable).
- Mounting Option: Valve can be installed in any orientation
- Actuator Connection: Ball Valve Flange size F03
- Media Temperature (Min): 36 °F, 2 °C
- Media Temperature (Max): 149 °F, 65 °C
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 113 °F, 45 °C
- Compatible App: First Alert App, Resideo App
- Manual Override: Yes
- Mounting Accessories: Metal Clip
- Product Height: 5.98 in, 152 mm
- Product Length: 5 in, 127 mm
- Product Width: 2.67 in, 68 mm
- Additional Dimensions Details: 10 ft cord on Power Supply Adapter
