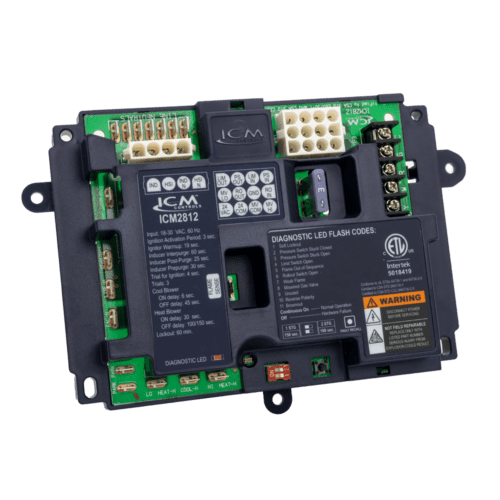

ICM Controls ICM2812-KIT Replacement Board for White-Rodgers 50M56U-843

BRAND: ICM Controls SKU: ICM2812-KIT

(3 customer reviews)

$92.99

MSRP: $106.94
You save 15%

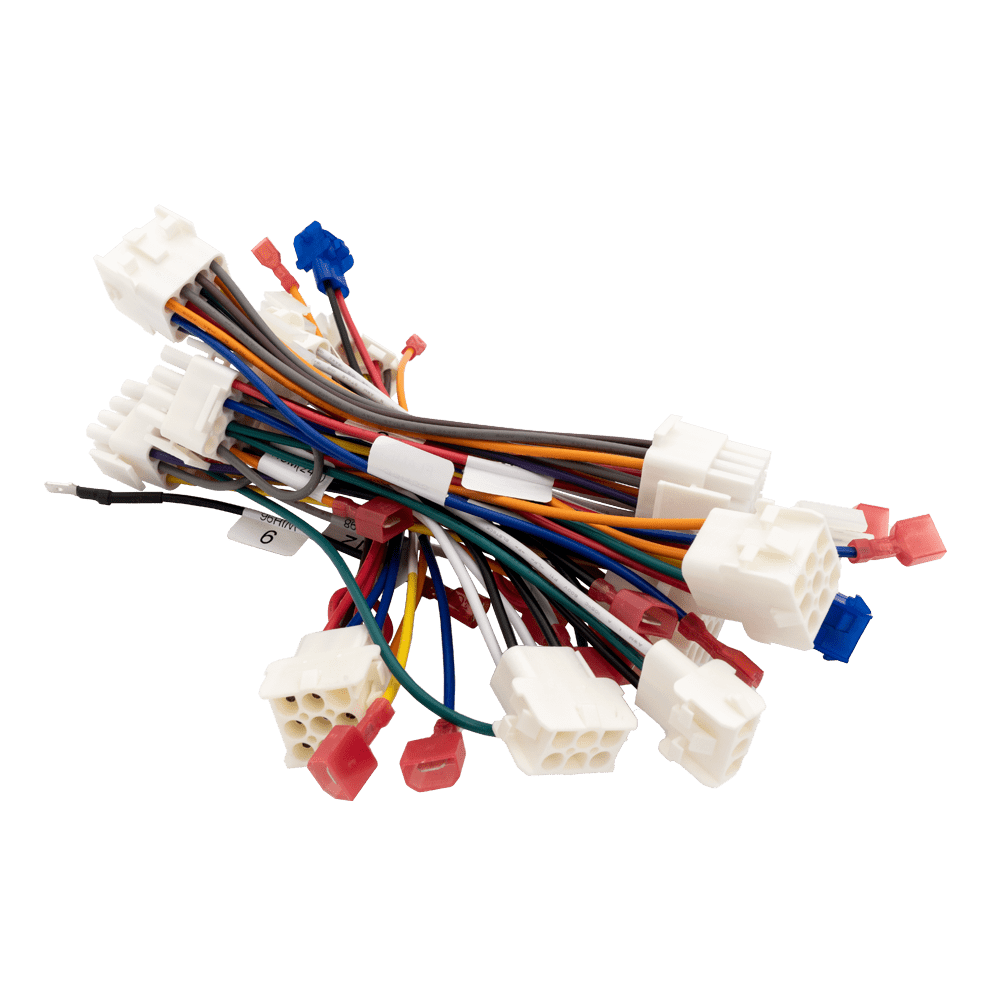

OEM Universal Replacement Board: with Cable Harnesses

Availability:

37 In Stock

Description

The ICM2812-KIT is a universal replacement board that comes packaged with a series of cable harnesses that make it a replacement for the White-Rodgers 50M56U-843 and more than 150 competitive part numbers. Download the ICM Controls app for full cross reference information.

Features
  • Hot Surface Ignition (HSI) control board
  • Microprocessor-based
  • Monitors timing, trial for ignition, system switches, flame sensing and lockout.
  • 100% lockout safety feature
  • Compatible with LP or Natural Gas
  • LED indication for status and fault codes to aid in troubleshooting

Additional information

Voltage

24V, 18 – 30V
Line Voltage

120 VAC
HSI Hot Surface Ignitor

6 Amp @ 120 VAC
Gas Valve

1.5 Amp @ 24 VAC
Inducer Draft Motor

2.2 FLA @ 120 VAC
Blower Motor

14.5 FLA @ 120 VAC
Operating Temperature

-40?F to 176?F
Humidity Range

5 to 95% RH (Non-condensing)
UPC 800442123240

Documents

Product Documents

3 reviews for ICM Controls ICM2812-KIT Replacement Board for White-Rodgers 50M56U-843

  1. Scott –

    my unit was listed but did not work at all

  2. baoyin chen (verified owner) –

  3. Thomas Dupont (verified owner) –

Add a review

Compatible Products

Amana
0130F00005
0130F00005S
0130F00006
0130F00006S
102077-02
102077-03
102077-04
102077-09
10207701
10207704
10207706
10207710
10207714
10207717
10207718
10207719
10207720
10207720S
B1809926
B1809926S
PCB00109
PCBBF109
PCBBF110
PCBBF110S
PCBBF112
PCBBF112S
PCBBF122
PCBBF122S
PCBBF123
PCBBF123S
PCBBF132
PCBBF132S
PCBBF134
PCBBF135
PCBBF136
PCBBF138
American Standard Brands
CNT02789
CNT02891
CNT03076
CNT03798
CNT03799
CNT05164
CNT05165
D341122P01
D341235P01
D341235P03
D341396P04
D341396P05
D34139P03
Braeburn
101008
101010
101012
101014
101208
101210
101212
101214
Carrier
HK42FZ004
HK42FZ007
HK42FZ008
HK42FZ009
HK42FZ011
HK42FZ016
Coleman
031-00662
031-00662-700
031-01250-700
031-01266-700
031-01284-000
031-01973-000
031-09166-000
265901
265902
331-01933-000
331-01972-000
331-09167-000
539617
52537074000
52537077000
G951ADB-1401
G951ADB-1401C
G951ADB-1403
G951ADB1402
G951AEB-1403
S1-03100662000
S1-03101250000
S1-03101266000
S1-03101267000
S1-03101267001
S1-03101284000
S1-03101933000
S1-03101972000
S1-03101973000
S1-03109167000
S1-33102956000
S1-33103010000
DiversiTech
6-M2748
Goodman
0130F00005
0130F00005S
0130F00006
0130F00006S
102077-02
102077-03
102077-04
102077-09
10207701
10207704
10207706
10207710
10207714
10207717
10207718
10207719
10207720
10207720S
B1809926
B1809926S
PCB00109
PCBBF109
PCBBF110
PCBBF110S
PCBBF112
PCBBF112S
PCBBF122
PCBBF122S
PCBBF123
PCBBF123S
PCBBF132
PCBBF132S
PCBBF134
PCBBF135
PCBBF136
PCBBF138
Heil Quaker
1010806
ICP Brands
1010806
International Comfort Products
1380686
1380698
1380699
Lennox
031-00662
031-00662-700
031-01250-700
031-01266-700
031-01284-000
031-01973-000
031-09166-000
100925
100925-01
100925-02
100925-03
10M93
10M9301
12L6901
17W9201
23W51
265901
1214201
17W92
23W5101
265902
30W25
30W2501
32M8801
331-01933-000
331-01972-000
331-09167-000
539617
52537074000
52537077000
56L84
56L8401
69M08
69M0801
69M15
69M1501
G951ADB-1401
G951ADB-1401C
G951ADB-1403
G951ADB1402
G951AEB-1403
S1-03100662000
S1-03101250000
S1-03101266000
S1-03101267000
S1-03101267001
S1-03101284000
S1-03101933000
S1-03101972000
S1-03101973000
S1-03109167000
S1-33102956000
S1-33103010000
X4459
X445901
Luxaire
031-00662
031-00662-700
031-01250-700
031-01266-700
031-01284-000
031-01973-000
031-09166-000
265901
265902
331-01933-000
331-01972-000
331-09167-000
539617
52537074000
52537077000
G951ADB-1401
G951ADB-1401C
G951ADB-1403
G951ADB1402
G951AEB-1403
S1-03100662000
S1-03101250000
S1-03101266000
S1-03101267000
S1-03101267001
S1-03101284000
S1-03101933000
S1-03101972000
S1-03101973000
S1-03109167000
S1-33102956000
S1-33103010000
Nordyne
624557
624564
624591
624628
624631
624631A
710128A
902378
902696
903106
Nortek Global HVAC
624557
624564
624591
624628
624631
624631A
710128A
902378
902696
903106
Rheem
62-22694-XX
62-22732-XX
62-24044-XX
62-24045-01
62-24046-01
62-24084-82
62-24268
62-24268-01
62-24268-02
62-24268-03
695-200
RUUD Brands
62-22694-XX
62-22732-XX
62-24044-XX
62-24045-01
62-24046-01
62-24084-82
62-24268
62-24268-01
62-24268-02
62-24268-03
695-200
Texas Instruments
41F-5
61F3
6DT
6DT-1
6DT-2
Thermo Products
350486
350836
1010806
Trane
CNT02789
CNT02891
CNT03076
CNT03798
CNT03799
CNT05164
CNT05165
D330927P01
D330930P01
D330934P01
D340035P01
D340774P01
D341122P01
D341213P01
D341235P01
D341235P03
D341396P01
D341396P04
D341396P05
D34139P03
United Technologies
1012-83-9336A
1012-83-9337A
1012-925
1012-925A
1012-925B
1012-925C
1012-933D
Whirlpool
1010806
8068142
8068561
8068563
99958174
99958175
White-Rodgers
50A50-110
50A50-111
50A50-112
50A50-113
50A50-130
50A50-131
50A50-142
50A50-143
50A50-205
50A50-206
50A50-207
50A50-208
50A50-209
50A50-210
50A50-215
50A50-216
50A50-229
50A50-230
50A50-240
50A50-241
50A50-245
50A50-285
50A50-286
50A50-288
50A50-295
50A50-296
50A50-298
50A50-405
50A50-406
50A50-407
50A50-408
50A50-438
50A50-471
50A50-472
50A50-473
50A50-474
50A50-475
50A50-571
50A55-143
50A55-241
50A55-245
50A55-250
50A55-285
50A55-286
50A55-288
50A55-289
50A55-438
50A55-474
50A55-476
50A55-480
50A55-486
50A55-571
50A56-242
50A56-243
50A65-120
50A65-121
50A65-143
50A65-288
50A65-289
50A65-474
50A65-475
50A65-476
50A66-122
50A66-123
50M56-281
50M56-289
50M56-291
50T35-730
50T35-743
50T55-288
50T55-289
50A55-3797
50A55-743
50A55-843
50A56-956
50A65-5165
50A65-843
50A66-743
50M56-743
York
031-00662
031-00662-700
031-01250-700
031-01266-700
031-01284-000
031-01973-000
031-09166-000
265901
265902
331-01933-000
331-01972-000
331-09167-000
539617
52537074000
52537077000
G951ADB-1401
G951ADB-1401C
G951ADB-1403
G951ADB1402
G951AEB-1403
S1-03100662000
S1-03101250000
S1-03101266000
S1-03101267000
S1-03101267001
S1-03101284000
S1-03101933000
S1-03101972000
S1-03101973000
S1-03109167000
S1-33102956000
S1-33103010000
