Description

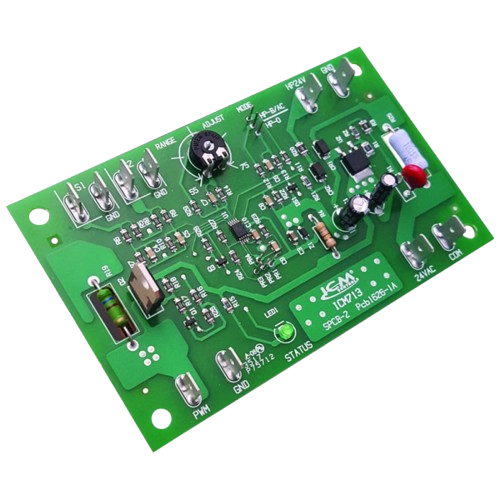

The ICM713 ECM Head Pressure Control by ICM Controls is a high-performance electronic module designed to optimize the operation of Electronically Commutated Motors (ECMs) in HVAC systems. By employing Pulse Width Modulation (PWM) technology, the ICM713 adjusts motor speed based on temperature inputs, enhancing system efficiency, reducing energy consumption, and prolonging motor lifespan.
Features:
-
Dual Temperature Input Capability: Supports single or dual temperature sensors for versatile application scenarios.
-
PWM Output: Delivers a low-current, pulse-width modulated output (13.5 VDC, 10mA max, 80 Hz) for precise motor speed control.
-
Heat Pump Bypass Circuitry: Integrates heat pump bypass functionality to maintain optimal performance during defrost cycles.
-
Lead-Free Design: Manufactured with lead-free components, aligning with environmental and safety standards.
-
Wide Operating Temperature Range: Operates effectively in temperatures ranging from -40°F to 158°F (-40°C to 70°C).
-
Compact Dimensions: Measures 4.72″ x 3″ x 0.68″, facilitating easy integration into various HVAC systems.
-
Compatibility: Replaces Hoffman 880-ECM(10)SSHP, offering a reliable alternative for existing installations.
