Description

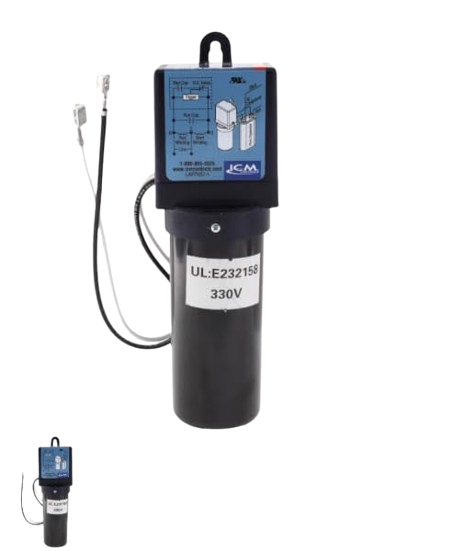

The most advanced universal hard start kit on the market! Rated for 1/12 to 5 HP applications, the ICM866U combines award-winning, high-powered relay output design with advanced patented circuitry for greater precision and reliability.
Features:
- Patented circuitry with differential voltage sensing technology
- Monitors differential compressor auxiliary voltage
- Precisely engages/disengages the start capacitor
- Not affected by ambient temperatures
- Recycles instantly
- Self-adjusting to changes in voltages
- Does not rely on relay with pre-set, factory default ranges
- Eliminates guesswork in “tweener” applications
- Extends motor life
- Rated for 1/12 to 5 HP applications
- Reduces inventory, saves $$$
- One model is all you need
- Simple, two-wire installation
- Faster install time
- Minimizes risk of accidental miswires
- Multi-voltage operation – 115 or 230 VAC motors
- 145-175 µF @ 330V
- UL Recognized
Replaces:
- SUPCO: SPP5, SPP6, SPP5E, SPP6E, SPP7E, SPP8E, SPP9E, SPP10E, RCO810, RCO410, RCO210
- KICKSTART: KS1, TO-5, KS8
- 5-2-1: CSR-U1, CSR-U2, CSR-U3
- WATSCO: WSX1
- MARS: 32708, SS1, SS5, 32703, 32704, 32701, 32702
- DIVERSITECH: DST-5, DST-6
