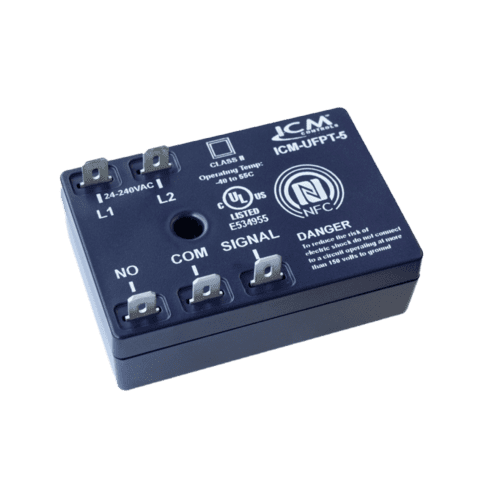

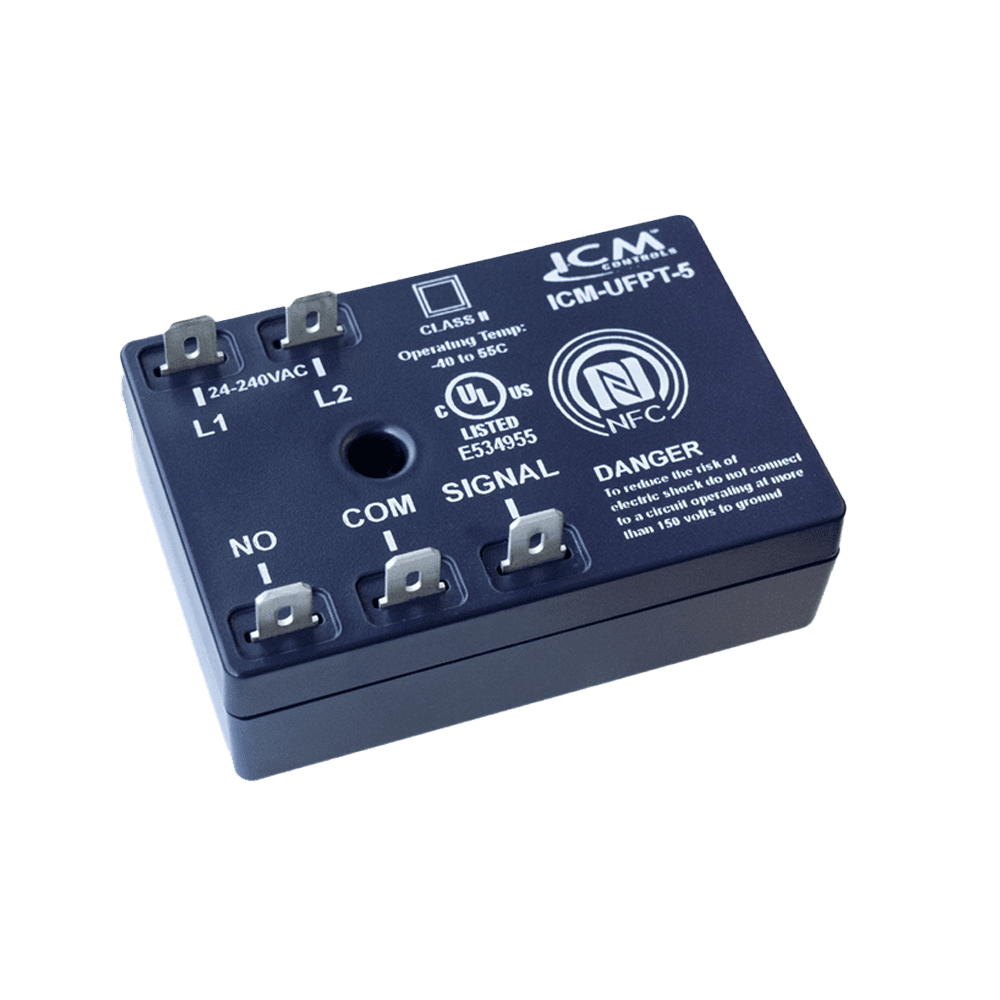

Name: ICM Controls ICM-UFPT-5 Time Delay Relay, Universal Control
Brand: ICM Controls
SKU: ICM-UFPT-5
Rating: 5.00 (1 reviews)

ICM Controls ICM-UFPT-5 Time Delay Relay, Universal Control

Rated 5.00 out of 5 based on 1 customer rating

$46.80Add to Cart for Savings

ICM UFPT-5 Time Delay Relay, Universal Control

Description

ICM Controls Universal Function Programmable Timer.

Universal input voltage 24 -240 VAC
40 ma min load requirement (2-wire only)
Reduce truck stock inventory
Includes a 5 Amp dry contact output relay for controlling a load directly – no minimum load requirement (5-wire only)
Compatible with over 85 legacy ICM timers
NFC technology allows for the user to change timer application on the fly using a smart phone to set up all functionality of the timer including mode and delay time.
Installation instructions, wiring diagrams, and timing diagrams conveniently displayed on the App Easy installation

ICM102, ICM102F, ICM103, ICM104, ICM203, ICM203F & ICM206 and over 85 legacy ICM timers
A-1, Diversified, Gemline, Ice-O-Matic, Mars, Robertshaw, Supco, Wagner/Diversitech

Additional information

Input Voltage Range	24–240 VAC
Line Frequency	50/60 Hz
Impulse Voltage	2500 V
Response Time	75 ms
Timer Modes	On delay; Anti-short cycle; Off delay (5-wire); Repeat; Interval; Single shot (5-wire)
Output Ratings	1A @ 240VAC (pilot); 4 FLA/4 LRA @ 277VAC; 5A @ 277VAC; 8.75A @ 240VAC (resistive)
Min Load Requirement	40 mA (2-wire only)
Output Type	Dry contact relay (5-wire)
Dimensions	3" L × 2" W × 1" D
UPC	800442000411
