Description

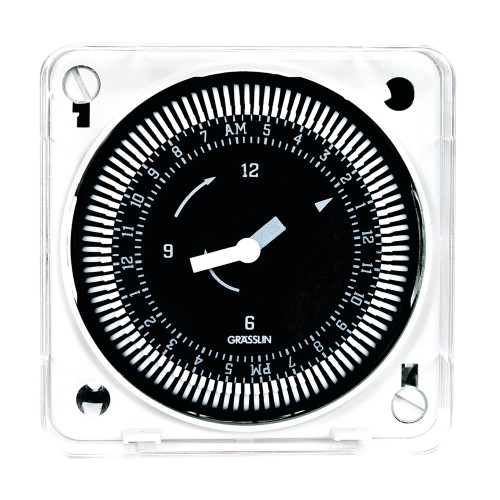

The Intermatic MIL72EQTUZH-120 is a precision 24-hour electromechanical timer module designed to deliver dependable scheduling for a wide range of electrical applications. Engineered for commercial and residential systems, this flush-mount module offers robust performance, long-lasting build quality, and simple installation — ideal for lighting control, HVAC systems, pumps, motors, generators, and more.
Key Features
-
120 V / 21 A SPDT switch — rated for up to 21 amps, it supports resistive, motor, or lighting loads (e.g. motors up to 1 HP @ 125 VAC, 2 HP @ 250 VAC).
-
Quartz-drive mechanism with battery backup — ensures reliable operation and maintains timing even in power outages.
-
Flush-mount or surface/DIN-rail compatible — install directly inside control panels or enclosures for a clean, integrated setup.
-
Flexible time cycles — 24-hour scheduling with captive trippers and minimum 15-minute ON/OFF intervals, giving you precise control of equipment runtime.
-
Compact and durable design — small footprint (approx. 2.83″ × 2.83″ × 2.60″) and dust cover included, making it suitable for a wide variety of indoor or protected outdoor installations.
