Description

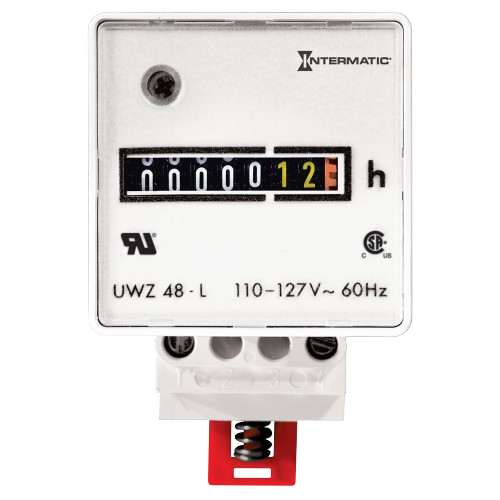

The Intermatic UWZ48-120U is a dependable, non-resettable AC hour meter designed for accurate runtime tracking of motors, pumps, HVAC systems, control panels, and machinery in commercial and industrial applications. Compact yet rugged, this meter helps you monitor total operating hours so you can schedule maintenance and track equipment usage with confidence.
Key Features
-
Accurate runtime tracking: Records up to 99,999.99 hours with 7 digits displayed — ideal for long-term monitoring of equipment.
-
120 VAC / 60 Hz operation: Compatible with standard AC power supplies for wide-ranging industrial and commercial use.
-
Simple installation — surface mount with plug-in base: The meter plugs into a socket base that mounts easily on control panels or enclosures, with screw-lug wiring and no need for complex terminal protection.
-
Compact, space-efficient design: With a bezel size of 48 × 48 mm (≈1.89″ × 1.89″), the UWZ48 fits neatly into panels or equipment enclosures, making it suitable for retrofit installations or tight spaces.
-
Robust construction & wide operating temperature range: The unit is built for indoor use and rated for –40 °F to 160 °F (–40 °C to 72 °C), so it can handle a variety of environments and industrial conditions.
-
Low power draw: Consumes roughly 1 VA, ensuring the meter itself has minimal impact on the power load.
