Description

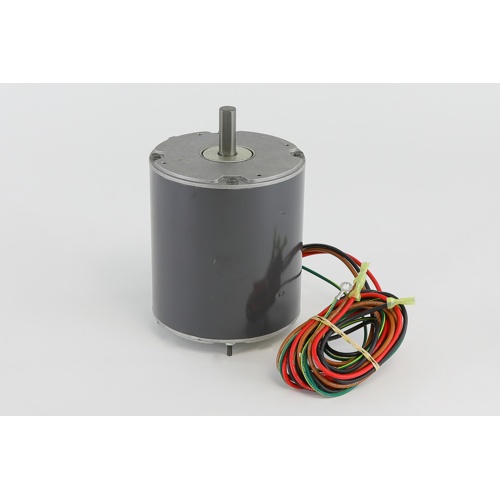

The International Comfort Products 1054575 is a heavy-duty condenser fan motor engineered for reliable, long-lasting performance in commercial and residential HVAC condensing units. Designed as a direct OEM replacement, this motor delivers consistent airflow and efficient operation across a wide range of cooling applications.
Motor Specifications
- Horsepower: 3/4 HP
- Voltage: 460 Vac, Single Phase
- Speed: 1,140 RPM, 1-Speed
- Amperage: 1.4 Amps
- NEMA Frame Size: 48
- Motor Type: Permanent Split Capacitor (PSC)
- Rotation: Counter-Clockwise (CCW)
Construction & Mounting
- Bearing Type: Sleeve Bearing
- Mounting Style: Band/Thru Bolt Mount
- NEMA 48 frame for broad compatibility with standard condenser fan assemblies
Key Features & Benefits
- Permanent Split Capacitor design provides smooth, efficient starting and running performance
- Sleeve bearing construction ensures quiet, low-maintenance operation
- Band/Thru Bolt mounting offers flexible installation options
- CCW rotation matches OEM specifications for International Comfort Products condensing units
- Single-phase, 460Vac rating suits commercial HVAC applications
- Direct OEM replacement minimizes downtime and simplifies sourcing
Application
This condenser fan motor is intended for use in International Comfort Products (ICP) condensing units and compatible HVAC systems requiring a 3/4 HP, 460V, single-phase motor with a 48 NEMA frame. Always verify motor specifications against your equipment’s nameplate data before installation.
