Description

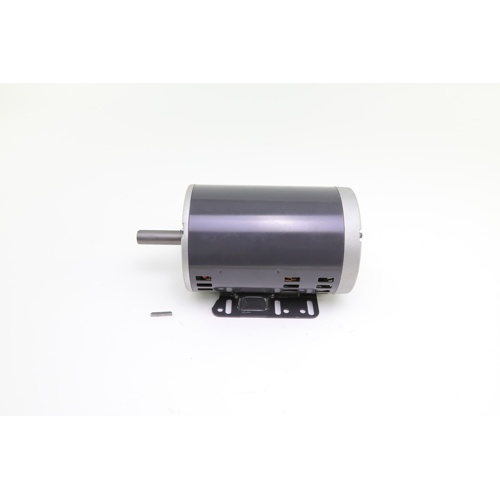

International Comfort Products 1070644 Blower Motor Overview
The International Comfort Products 1070644 is a heavy-duty OEM replacement blower motor engineered for reliable performance in commercial and industrial HVAC air-handling applications. Rated at 2 horsepower and designed for three-phase power, this motor delivers consistent airflow at 1725 RPM across a wide voltage range, making it a versatile solution for a variety of system configurations.
Key Specifications
- Horsepower: 2 HP
- Voltage: 208-230/460 Vac
- Phase: Three Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 7.8 A (208-230V) / 3.9 A (460V)
- NEMA Frame Size: 56
- Bearing Type: Ball Bearing
- Mount Style: Rigid Mount
- Rotation: Reversible
Features & Benefits
- Dual-voltage capability (208-230/460Vac) allows installation flexibility across a range of commercial electrical systems
- Three-phase design provides smooth, efficient operation and reduced energy consumption compared to single-phase alternatives
- Ball bearing construction ensures long service life, reduced friction, and lower maintenance requirements
- Reversible rotation allows field configuration to match system airflow direction requirements
- Rigid mount design provides a stable, vibration-resistant installation for demanding HVAC environments
- Standard 56 NEMA frame size ensures broad cross-compatibility and straightforward replacement
- 1725 RPM operating speed delivers consistent, reliable blower performance
Application
Designed as a direct OEM replacement for International Comfort Products equipment, the 1070644 blower motor is well-suited for commercial air handlers, fan coil units, and other HVAC blower assemblies requiring a three-phase, multi-voltage motor. Its reversible rotation and standard NEMA 56 frame make it adaptable for a wide range of installations.
