Description

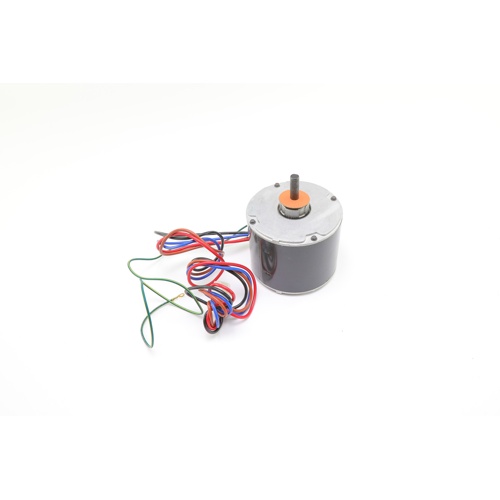

International Comfort Products 1086404 Condenser Fan Motor
The International Comfort Products 1086404 is a precision-engineered condenser fan motor designed for reliable, long-term performance in residential and light commercial HVAC applications. Built to OEM specifications, this motor is a direct replacement solution that ensures your condenser unit operates at peak efficiency.
Key Specifications
- Horsepower: 1/4 HP
- Voltage: 208–230V AC
- Phase: Single Phase
- Speed: 840 RPM, 2-Speed
- Amperage: 1.5 Amps
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mount Type: Band Mount
- Rotation: Clockwise (CW)
- Motor Type: Permanent Split Capacitor (PSC)
Features & Benefits
- OEM-quality replacement motor for International Comfort Products systems
- Permanent Split Capacitor (PSC) design delivers smooth, efficient operation and improved starting torque
- 2-speed capability provides flexible airflow control and energy savings
- 48 NEMA frame ensures broad compatibility and straightforward installation
- Sleeve bearing construction offers quiet, low-maintenance operation
- Band mount design simplifies installation and secure positioning in condenser assemblies
- Clockwise (CW) rotation matches standard condenser fan configurations
- Single-phase, 208–230V AC input is compatible with standard residential and light commercial power supplies
Application
This condenser fan motor is engineered for use in International Comfort Products condensing units and compatible systems requiring a 1/4 HP, 840 RPM, 2-speed PSC motor. Its band mount configuration and 48 NEMA frame make it a reliable drop-in replacement for technicians performing routine maintenance or emergency repairs.
Why Choose Jackson Systems
Jackson Systems stocks a comprehensive selection of OEM and replacement HVAC motors to keep your jobs moving. Order the ICP 1086404 with confidence and get the right part delivered fast.
