Description

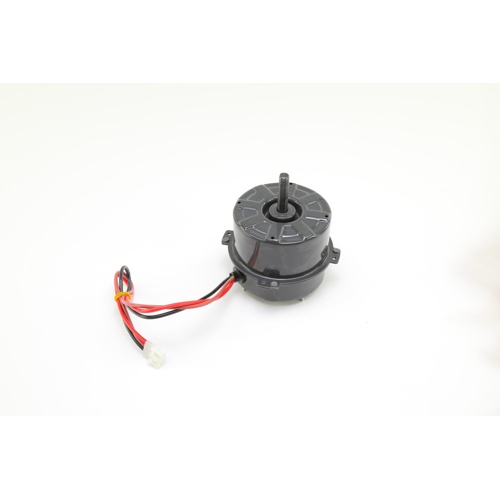

The International Comfort Products 1086486 is a direct OEM replacement condenser fan motor engineered for reliable, efficient performance in residential and light commercial HVAC condensing units. Built to exacting ICP specifications, this motor delivers consistent airflow across the condenser coil to maintain proper system pressures and protect compressor life.
Electrical Specifications
- Voltage: 208–230 VAC
- Phase: Single Phase
- Full Load Amps: 1.08 A
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 1
Mechanical Specifications
- Horsepower: 1/5 HP
- Speed: 1075 RPM
- NEMA Frame Size: 42
- Bearing Type: Sleeve Bearing
- Mounting Style: Thru Bolt Mount
- Rotation: Clockwise (CW), viewed from shaft end
Key Features
- OEM-specified replacement for International Comfort Products condensing units
- Permanent Split Capacitor (PSC) design for smooth, energy-efficient operation
- 42 NEMA frame ensures drop-in dimensional compatibility
- Sleeve bearing construction for quiet, low-maintenance operation
- Thru bolt mounting for secure, vibration-resistant installation
- Single-speed operation matched to original equipment airflow requirements
- 208–230 VAC rating compatible with standard residential and commercial supply voltages
Application
Designed as a direct replacement condenser fan motor for International Comfort Products (ICP) systems, this motor is ideal for HVAC technicians performing routine maintenance or emergency repairs on ICP condensing units. Always verify the original motor’s nameplate data against these specifications before installation to ensure proper fit and function.
