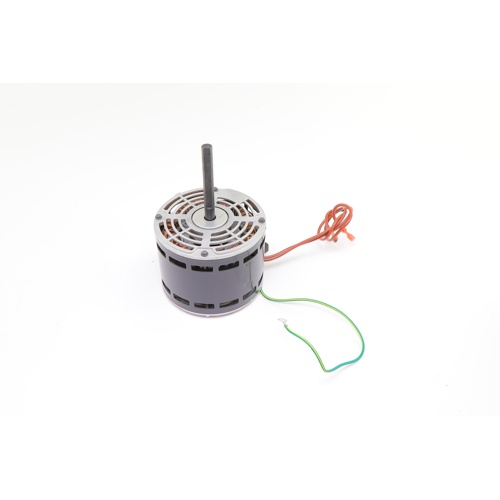

International Comfort Products 1087048 Blower Motor Overview
The International Comfort Products 1087048 is a direct-replacement blower motor engineered for reliable air-handling performance in residential and light-commercial HVAC systems. Featuring a Permanent Split Capacitor (PSC) design, this motor delivers efficient, quiet operation across three selectable speed taps — giving technicians the flexibility to match airflow to system requirements without additional components.
Electrical Specifications
- Horsepower: 1/4 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Amperage: 2.2 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 1075 RPM
- Number of Speeds: 3
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mounting Style: Band Mount
- Rotation: Counterclockwise (CCW)
Key Features & Benefits
- PSC motor design provides energy-efficient, low-noise operation ideal for continuous blower duty
- Three-speed capability allows airflow balancing without additional controls
- Band mount design simplifies installation and replacement in existing blower assemblies
- Sleeve bearing construction ensures smooth, quiet performance over extended service life
- Standard 48 NEMA frame ensures broad cross-reference compatibility
- CCW rotation pre-configured for correct airflow direction — no field modification required
- OEM-quality replacement sourced directly from International Comfort Products
Application
This motor is designed as an OEM replacement for International Comfort Products air handlers and furnace blower assemblies. Always verify rotation direction, mounting style, and speed wiring before installation. Consult the equipment service manual to confirm capacitor requirements for PSC motor operation.
