Description

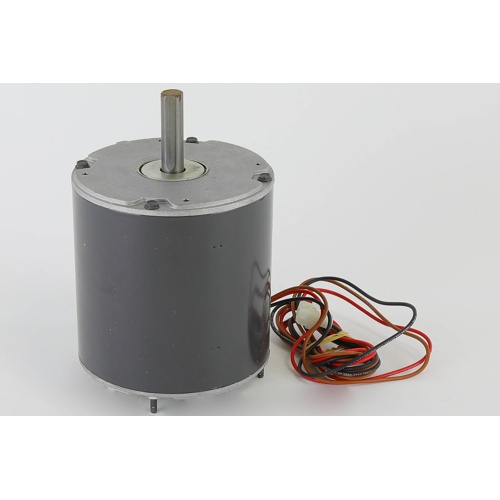

The International Comfort Products 1098501 is a direct-replacement condenser fan motor engineered for reliable, efficient performance in residential and light-commercial air conditioning applications. Built to OEM specifications, this motor delivers consistent airflow across the condenser coil to maintain proper system operation and protect compressor life.
Electrical Specifications
- Voltage: 208–230 VAC
- Phase: Single Phase
- Full Load Amps: 2.6 A
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 1
Mechanical Specifications
- Horsepower: 3/4 HP
- Speed: 1140 RPM
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Rotation: Counter-Clockwise (CCW)
- Mounting: Band / Thru-Bolt Mount
Key Features
- OEM-matched replacement for International Comfort Products condensing units
- Permanent Split Capacitor (PSC) design for smooth, energy-efficient starting and running
- 48 NEMA frame ensures drop-in dimensional compatibility
- Sleeve bearing construction provides quiet, low-maintenance operation
- Band/Thru-Bolt mounting accommodates a wide range of condenser fan applications
- Counter-clockwise (CCW) rotation matches original equipment airflow direction
- Single-phase, 208–230 VAC operation suits standard residential and commercial power supplies
Application
Designed as a factory-specification replacement for International Comfort Products condensing units, the 1098501 condenser motor is the correct choice when restoring original system performance. Its 1140 RPM operating speed and 3/4 HP output are matched to the condenser fan blade load, ensuring proper static pressure and airflow without overloading the motor. Always verify capacitor rating requirements before installation and replace the run capacitor if it shows signs of wear.
