Description

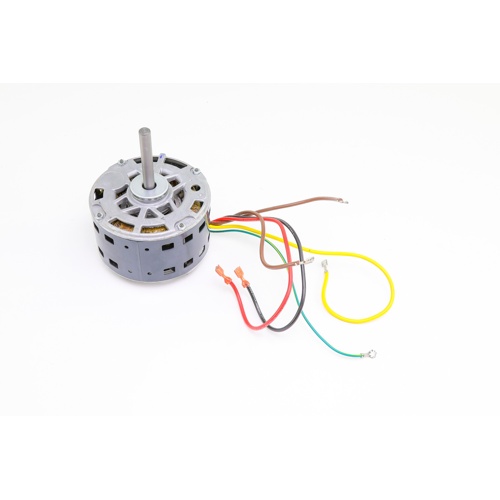

The International Comfort Products 1170644 is a direct OEM replacement blower motor engineered for reliable, efficient airflow performance in residential and light commercial HVAC applications. Built to exacting ICP specifications, this permanent split capacitor (PSC) motor delivers consistent, quiet operation across two speed settings, making it ideal for multi-stage airflow control in air handlers, furnaces, and fan coil units.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Horsepower: 1/12 HP
- Amperage: 0.7 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Speed: 810 RPM, 2-Speed
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Rotation: Clockwise (CW)
- Mounting Style: Band Mount
Key Features & Benefits
- OEM-quality replacement ensures drop-in compatibility with International Comfort Products systems
- Permanent Split Capacitor design provides smooth startup and energy-efficient continuous operation
- Two-speed capability allows for flexible airflow staging to match system demand
- 48 NEMA frame size offers broad cross-reference compatibility with other PSC blower motors
- Sleeve bearing construction delivers quiet, low-maintenance performance
- Band mount design simplifies installation and secure motor retention in blower housing
- Clockwise rotation pre-configured to match ICP blower assembly requirements
Application
Designed as a direct OEM replacement for International Comfort Products HVAC equipment, the 1170644 blower motor is suited for use in air handlers, furnaces, and fan coil units requiring a 1/12HP, 208–230V, single-phase PSC motor. Always verify rotation, speed taps, and mounting configuration against your existing unit before installation.
