Description

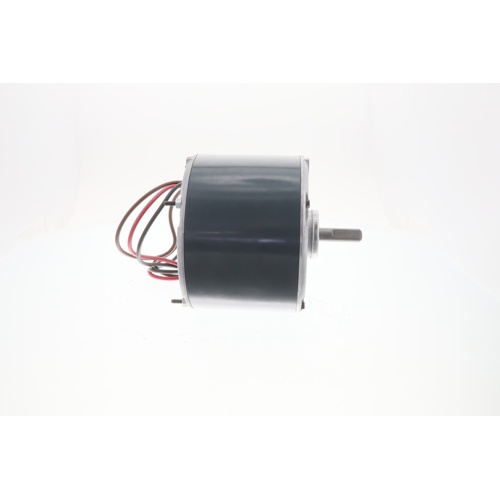

International Comfort Products 1172225 Condenser Fan Motor
The International Comfort Products 1172225 is an OEM-grade condenser fan motor engineered for reliable, efficient operation in residential and light commercial air conditioning and heat pump systems. Featuring a Permanent Split Capacitor (PSC) design, this motor delivers consistent torque and smooth single-speed performance, making it a trusted direct replacement for ICP, Heil, Tempstar, and other International Comfort Products brand equipment.
Key Specifications
- Horsepower: 1/3 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 1,075 RPM
- Number of Speeds: 1
- Full Load Amps: 1.9 Amps
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mount Type: Thru Bolt
- Rotation: Clockwise (CW), viewed from shaft end
- Motor Type: Permanent Split Capacitor (PSC)
Design & Construction
Built to ICP OEM specifications, this condenser motor features a rugged 48 NEMA frame for broad mounting compatibility and a sleeve bearing design suited for condenser fan applications. The thru bolt mounting configuration simplifies installation and ensures a secure fit in the original equipment housing. Clockwise rotation (as viewed from the shaft end) is factory-set to match original equipment airflow requirements.
Application
- Designed as a direct OEM replacement for International Comfort Products (ICP) condensing units
- Compatible with Heil, Tempstar, Arcoaire, Comfortmaker, and other ICP family brands
- Suitable for residential and light commercial split-system air conditioners and heat pumps
Why Choose the ICP 1172225?
Using a genuine ICP replacement motor ensures proper fit, correct electrical characteristics, and reliable long-term performance. The PSC motor design is known for its energy efficiency and low starting current, reducing stress on electrical components and extending system life. Order the ICP 1172225 from Jackson Systems for fast shipping and expert support.
