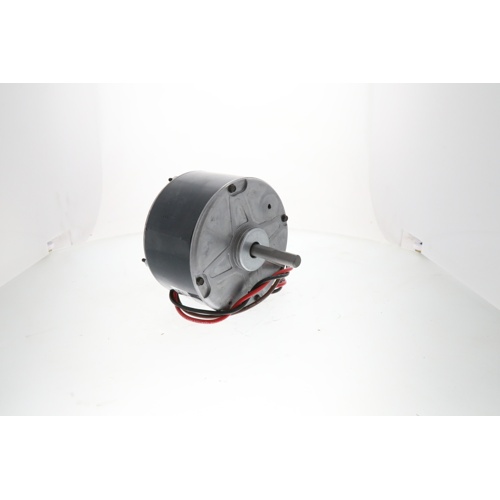

International Comfort Products 1172247 Condenser Fan Motor Overview
The International Comfort Products 1172247 is a direct-replacement condenser fan motor engineered to deliver reliable, efficient performance in residential and light-commercial cooling applications. Designed as a Permanent Split Capacitor (PSC) motor, it provides smooth, quiet operation and consistent airflow across the condenser coil — keeping your system running at peak efficiency season after season.
Electrical Specifications
- Horsepower: 1/8 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Amperage: 0.66 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 1 Speed
Mechanical Specifications
- RPM: 1075
- NEMA Frame Size: 48
- Bearing Type: Sleeve Bearing
- Mounting Style: Thru Bolt Mount
- Rotation: Clockwise (CW), viewed from shaft end
Key Features & Benefits
- OEM-quality replacement for International Comfort Products (ICP) condensing units
- Permanent Split Capacitor design ensures efficient, low-noise operation
- Sleeve bearing construction provides smooth, maintenance-friendly performance
- Thru bolt mounting for straightforward installation and secure fit
- Standard 48 NEMA frame for broad compatibility
- Single-speed, 1075 RPM operation optimized for condenser fan duty
Application
This motor is intended for use as a condenser fan motor replacement in ICP-branded HVAC systems. Always verify the original motor’s specifications — voltage, HP, RPM, rotation, and frame size — against your unit’s service manual before installation to ensure proper fit and function.
