Description

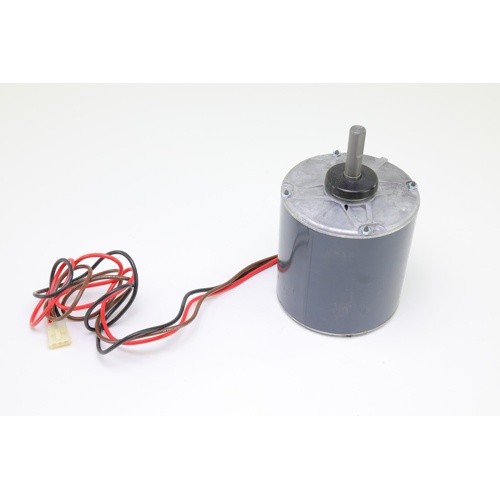

International Comfort Products 1172526 Condenser Fan Motor
The International Comfort Products 1172526 is a direct OEM replacement condenser fan motor engineered for reliable, efficient performance in residential and light commercial HVAC condensing units. Built to exacting specifications, this motor delivers consistent airflow and long service life in demanding outdoor environments.
Key Specifications
- Horsepower: 3/4 HP
- Voltage: 208–230 Vac
- Phase: Single Phase
- Speed: 1,100 RPM, 1-Speed
- Amperage: 3.9 Amps
- NEMA Frame Size: 48
- Bearing Type: Ball Bearing
- Mount Type: Band Mount
- Rotation: Clockwise (CW)
- Motor Type: Permanent Split Capacitor (PSC)
Features & Benefits
- OEM-specified replacement for International Comfort Products condensing units
- Permanent Split Capacitor (PSC) design provides smooth, energy-efficient operation
- Ball bearing construction ensures reduced friction, quieter operation, and extended motor life
- Band mount configuration simplifies installation and secure positioning in the condenser housing
- 48 NEMA frame size ensures dimensional compatibility with standard condenser motor applications
- Single-phase, 208–230 Vac input suits standard residential and light commercial power supplies
- Clockwise (CW) rotation matches OEM airflow direction requirements
- 1,100 RPM operating speed optimized for condenser coil heat rejection efficiency
Application
Designed as a direct OEM replacement for International Comfort Products condensing units, the 1172526 condenser motor is the trusted choice for HVAC technicians seeking a reliable, drop-in solution. Its robust ball bearing design and PSC motor technology make it well-suited for year-round outdoor operation.
